This one is the long awaited shooting of the gunite roof. As per usual, we’ll start with the time lapse video and end with a gallery. If I am up for it, I’ll post some lessons learned in between.
The video
Lessons Learned
Gunite vs Shotcrete: This topic was already covered, but I’ll link to it here. I’ll also add that it is all in the mix. If your gunite is just a basic sand and portland mix, it isn’t going to be as strong as a shotcrete mix with some fancy additives, heavier aggregate, etc.
Lath and Screen vs Hardboard: For the shotcrete, the lath and screen worked well. None of the shotcrete passed thru the screen because it uses a pea stone aggregate. However, the gunite used sand as the aggrigate and did pass thru the screen. The hardboard was great in some ways, but the weather really beat it up and gave it a rippled surface.
Shooting and finishing: Both are important. My shotcrete crew could have done just as good a job as the gunite crew, but they didn’t. For shooting, you want someone who understands what you need to get done and is just putting up what you need. If they are paid by the cubic yard, they may put up more than you need, etc. You definitly want enough finishing people to finish the surfaces adequately. If your crew is strong on shooting, but doesn’t have enough man power to finish, you will be sad.
Cleanup… If the crew treats cleanup as an afterthought, you will be sad. There will be mess. Make sure the crew has enough man power to deal with it. Beyond that, you probably need to keep your eyes open for things the busy crew may miss. For instance, I wish I had better covered some of the near by boulders to prevent them from getting gunite on them and I really wished I had better cleaned off the polished concrete ribs before the gunite set. That mistake cost me many many hours.
Do it yourself? My rule of thumb is that if a job takes tens of thousands of dollars worth of specialized equipment, you probably shouldn’t be doing it yourself. Add the experience, skill and stamina required and I would double down that you probably shouldn’t be doing your own gunite or shotcrete. That said, I do know of some who have and kudos to them.
Gallery:
Here are the forms, ready to go. Everything was damp and unpleasant.
A panorama of the south side of the house. Today, the focus is the roof, but this crew will also do the south side walls and I’ll make that the next post.
Panoramic of the equipment that arrived the first day. If any job requires this much equipment to do right, you probably shouldn’t do it yourself…
Again, I know some people do their own gunite. I just wouldn’t recommend that for most.
Actually, this first mix wasn’t quite right and they had a bunch of yelling and hand signals back to the rig and made some adjustments. Once they had what they wanted, they moved pretty quickly.
The biggest issue in this pic, other than the momentous start of the long awaited gunite, is the mess streaking down the walls and over the floors…
This is about the point when the curved rebar conked in (curved backwards) in this one wide area. Not ideal.
Sherri and I working together to brace the ceiling.
Sherri and I cleaned up the mess. I think she is smiling because I said something like, “If I take the pic, everyone will think you cleaned this up by yourself.” And she said, “I am.”
By this point, the rest of the crew was packed up or gone. A very early day for a gunite crew because of Halloween. It was just a few hours.
Scott was quite the artist when it came to finishing work. He is also the owner of the company.
This is the finished guest room section. The 4 inch gap at the top end is to tuck the insulation and waterproofing under.
Here is the finish work on the first vault at the end of the first shoot day.
Unfortunately, this area got messed up by the hurried rain finishing with plastic over it the second day.
It went from being the prettiest to the ugliest. But either way it will be buried eventually.
It was never caught on film, but I was running ahead of the crew and used up 2 jugs of this stuff ahead of where they were shooting. This just helps the new bond with the old.
Here the mix needed to be thin so it could get around the pipe and rebar and fill the area properly without voids. But it was a bit too thin and found its way around the edge of my formwork and onto the floor below.
Here is a look at the mess below. It doesn’t look that bad here, but keep in mind that it was well over an inch thick. For depth scale, that doorway has a 2×4 across the bottom of it and the slope goes up from there. It took many buckets full to clear this up.
I did do a quick wipe down of the sides of the concrete ribs, but I didn’t do a good enough job and spent hours more polishing it later.
Here I am cleaning up the mess…
In the background, you can see one the plumbers who showed up on this crazy day. He is putting a faucet on the outer wall.
See the video for more detail about what is going on here.
I got to try the Gunite Nozzle for a few minutes. Fun isn’t the right word for it, but I was glad I got a try.
After cleaning up the mess in the guest room, I put up this plastic to catch the mess in the first lath vault. This vault was two small with two tight a radius of curvature to use the hardboard panels.
I basically put up sticks of scrap wood with plastic screwed to them. I figured the plastic would catch the mess.
You can see that the quick-thinking sticks and plastic plan did hold up. I was pretty happy with myself at the time, but less happy when I tried to get that down after it hardened.
Not always as smart as I think I am. ¯\_(ツ)_/¯
Carlos and Ben Shooting.
I couldn’t tell if Carlos wanted me to take his pic or not. On the previous job, he was downright posing for me. But this time, he seemed a bit more reluctant. Maybe it was a bad hair day. 😉
Here Carlos is going to relay a message (via hand signals) to the rig crew.
You can also see inside that vault to the mess that fored on the plastic…
For this second lath vault, I just had enough time to cover the wood and the sand, and I had already started thinking about how I would get the mess from the earlier vault down again…
But I did end up needing to spend about 8 or more hours cleaning the ribs off later. They had so much gunite on them. I really should have washed them right away.

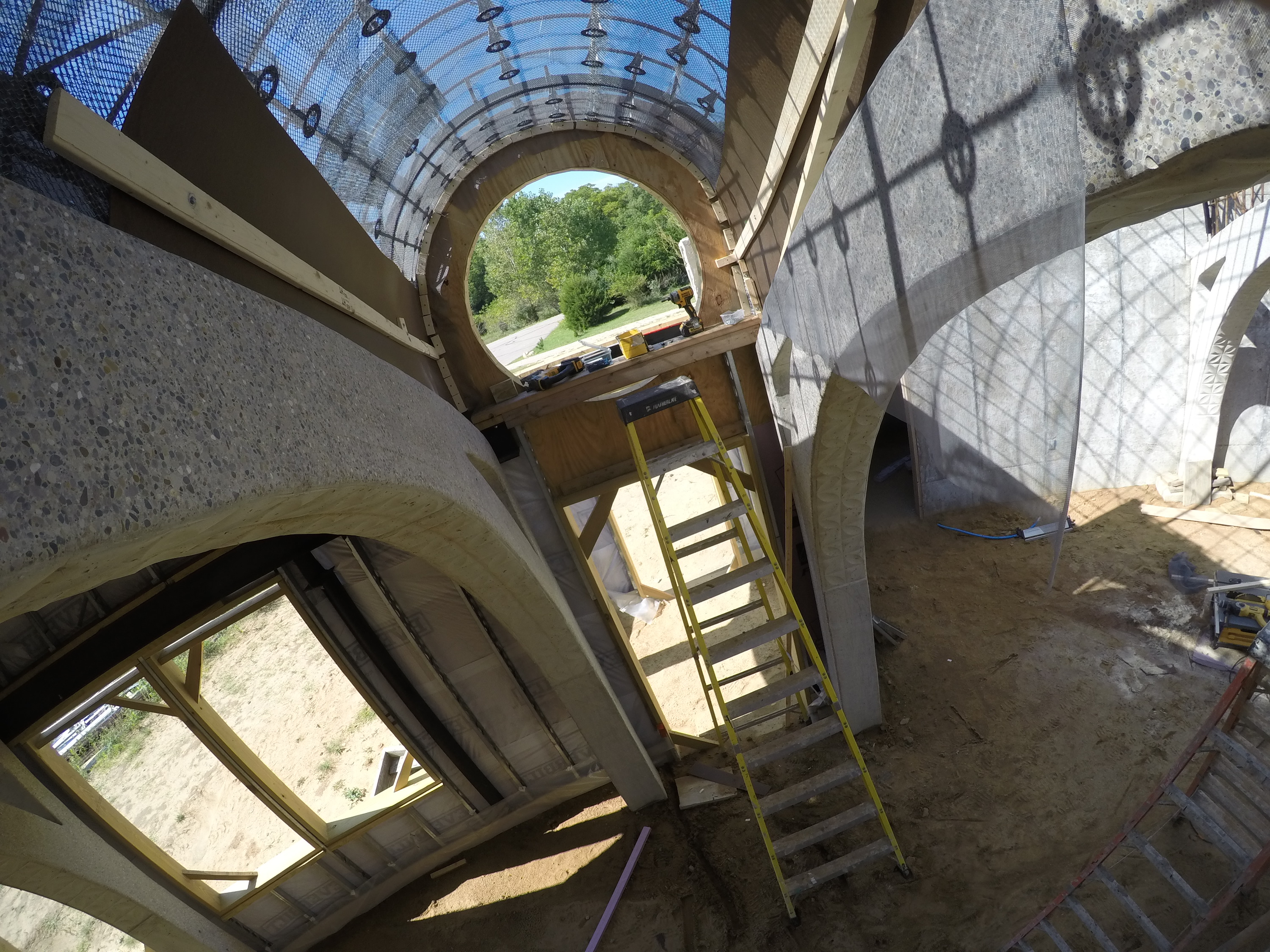

All the wet gunite in here gives it an interesting look.
We plan to “wet seal” these ribs when the whole thing is done, so we’ll see this again, without the mess.
Check out this guy, just standing on the edge like it was nothing…
This was the best pic. The gunite looks so soft and velvety.
This was a rare opportunity to get really close for a pic.
This went on all day, so I got a few similar looking pics. If you are wondering why I showed so many, you should see all the ones I didn’t show 😉
Especially after that first section conked in, it was pretty brave of the crew to keep on going.
Here is a momentary balance shift and recovery. It is pretty dangerous work.
The sun had set not long ago, now everybody goes below. To take a bath in one big tub. With soap all over, scrub scrub scrub.
Bonus points if you can name that author 😉
The panoramic feature on my camera did something interesting with this roof shape
I wanted to experiment with flat roof structures also, and it seemed like the best way to do that would be with the Quad Deck panels (we also used these to cover the basement). This is some explanation of how we did that.
First, the video.
The Video
The Basics
Quad deck is fancy formwork (Insulated Concrete Formwork, AKA ICFs) for pouring a concrete slab over an open space. To increase strength of the final concrete structure, Quad deck shapes the concrete into Ibeams. It also includes its own internal steel structure to help it resist deflection before the concrete cures. The EPS (expanded polystyrene) foam is the tough 25 PSI stuff.
When installing, there are a few key concepts to be aware of.
First, you need to support the weight of wet concrete until it cures. This means you will need secure shoring. The brochures show fancy specialized equipment, but scaffolding and cross beams works also. These need to be strong, so do a little math and make sure that your shoring can handle the load.
Second, the concrete is going to try and push the ICFs apart. If it can separate them, it will just spill thru between them and you will have a huge mess. Toe nailing screws thru the shoring cross beams and into the steel reinforcement in the ICFs can prevent them from moving apart. The “experts” who installed my basement used drywall screws. I had a much easier time using self tapping metal screws that could easily tap into the steel reinforcement in the Quad Deck.
Third, don’t forget you will need to remove the shoring later 😉 The guys who did my basement often put screws in at angles that were only possible if the Quad Deck wasn’t there. That gave me quite a hassle. Build your shoring from below so that it can be removed from below.
Fourth, keep in mind that the concrete needs to sit on the perimeter ledge. You will be removing that shoring, so the concrete needs to be firmly distributing its weight on the ledge around the perimeter. This means you need to remove all the insulation from the edge of the QuadDeck panels. It is tempting to leave some and let the ICF overlap the edge a little, but every bit of the ledge covered by the ICF is a bit of the ledge not supporting the load.
Fifth, you will need to mind the gap. After installing the quad deck. you can use spray foam insulation to close up any gaps between the wall and the quad deck. Remember from 4 that we don’t want any insulation on the ledge.
Sixth, following your rebar specs, and especially rebar for the bond beam around the perimeter, is critical for strength. Concrete is terrible in tension, you need the rebar for any sort of flat floor to carry a load because that load inevitably creates tension, especially in the bottom of the Ibeams.
Seventh, this is a pour, so close all the sides… Also, make sure that the perimeter wall is to the correct height for easy finishing, etc. Don’t just mark the wall where they should fill to, trim it off if you can.
Maybe I’ll come back and add more later.
The Gallery
A pic is worth a thousand words and here are a bunch of pics.
These beams will both support the load of the concrete and prevent it from separating the quad deck pieces (when screwed thru to the internal steel)
DCIM100GOPROG0017918.
First two pieces in place.
DCIM100GOPROG0018804.
I cut the quad deck on saw horses in the room below.
DCIM103GOPROG0030453.
DCIM104GOPROG0041063.
From this edge, you can see how the quad deck fits together
The Pink insulation is to make it easy to knock out that opening later. It basically just prevents the concrete from filling that space.
THe underside after the quad deck is in. You can see the perpendicular beams that will keep the quad deck together.
DCIM105GOPROG0052102.
These pics should give you an idea of the building space… One wrong step and you are headed down.
Just the quad deck
DCIM105GOPROG0052112.
DCIM102GOPROG0021083.
DCIM102GOPROG0021081.
Just a pic.
This was where one of the edges of the quad deck broke off. It was too big to fix with spray foam.
The fix was to screw a board across the hole
We are ready to shoot, but still waiting on the gunite crew
In preparation for shooting the gunnite on the roof we needed to put up some forms that would keep the concrete from just falling thru. The radial vaults have simple curvature, so we could build the forms from boards pressed up against the steel arches. Making that happen took some compromises in the plan. As usual, challenges arose. Enjoy.
The Video
The Chimney
In the video I forgot to include any footage of the chimney going in. Basically, I built this form so the shotcrete would create a good base for my chimney on the vault. My one regret was that I didn’t think to close the top of the form in order to prevent the gunnite from going inside the chimney hole.
The Gallery
A picture is worth a thousand words and here a bunch of pictures
We started with full panels and planned to but joint them and attach batons over the ends. But it definitely didn’t work. So I just sat and thought about it for a while.

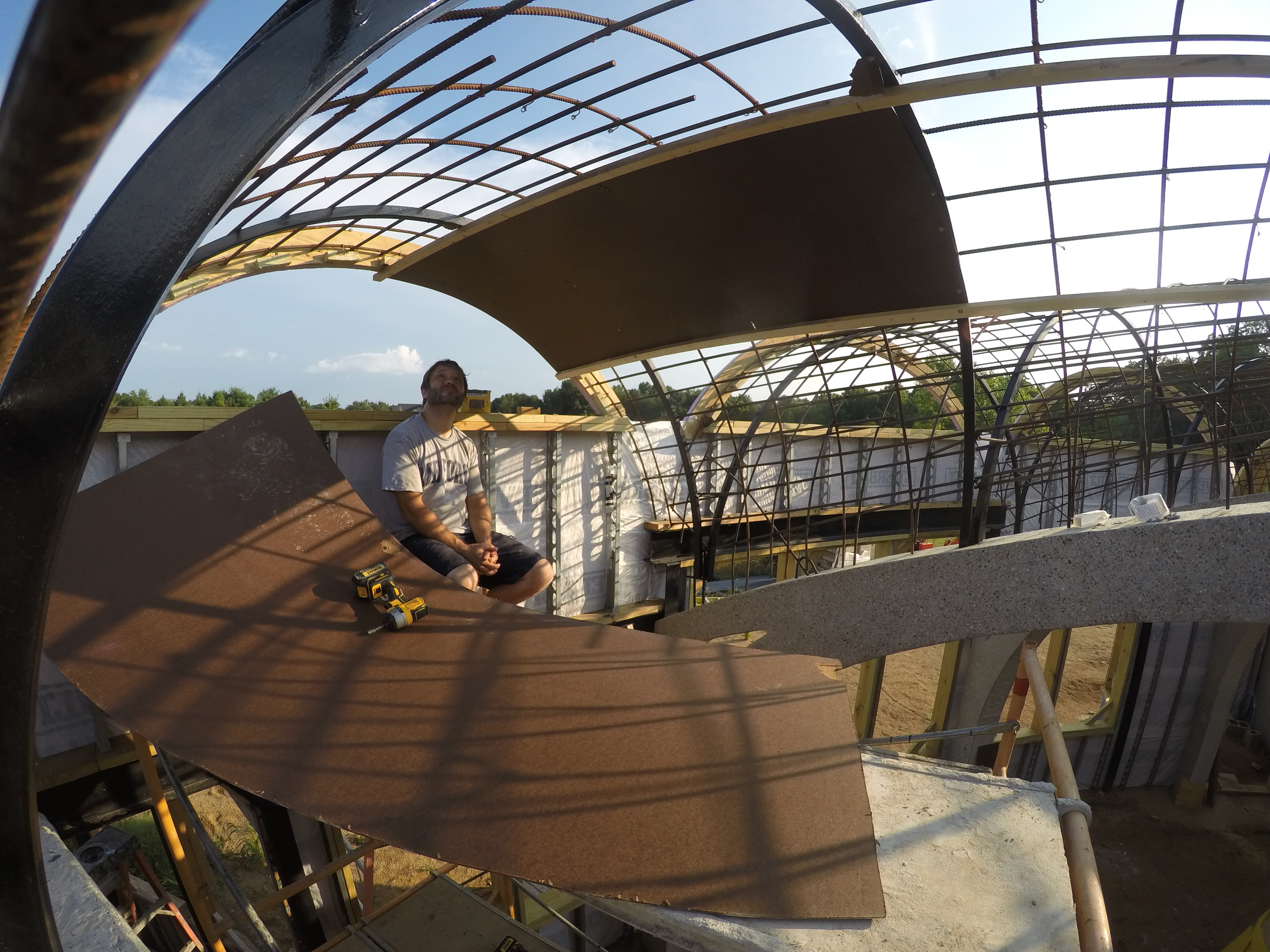

My first panel attempt.
The vault is radial, so simple curvature and a panel should have fit smooth. But I forgot that the outer edge is inset 2 inches from the bar, which means I needed to notch the panel so it would work out.

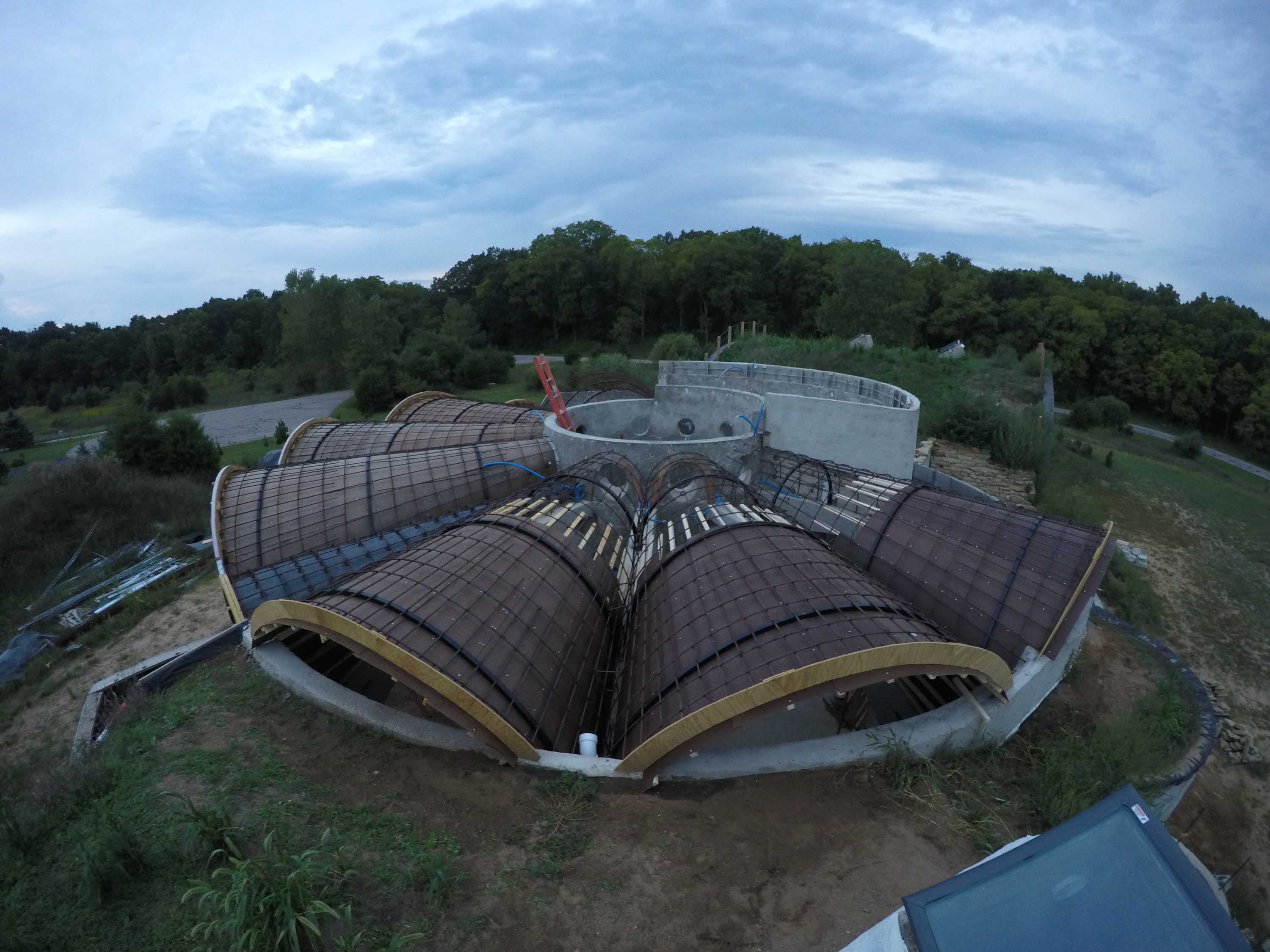

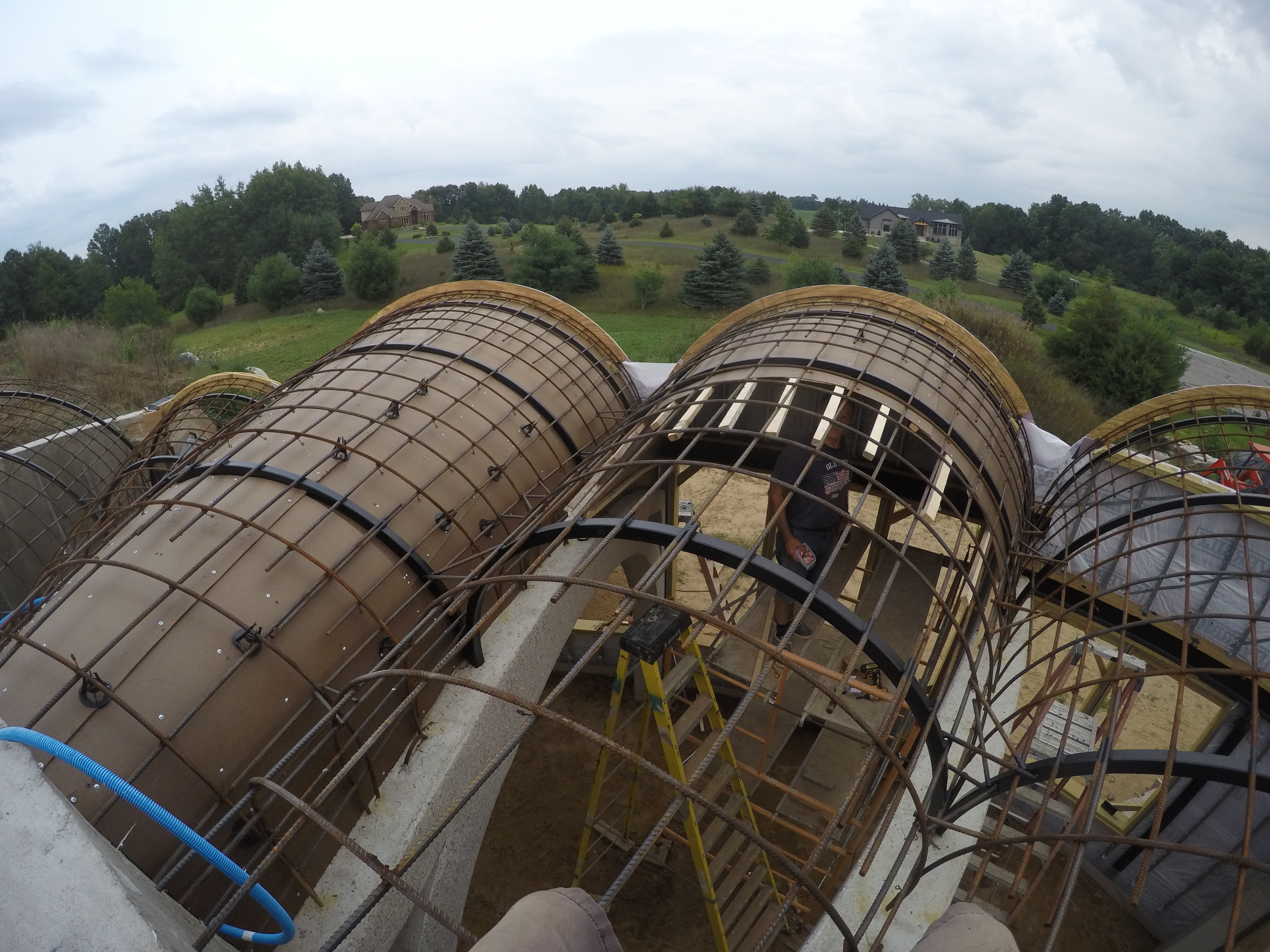

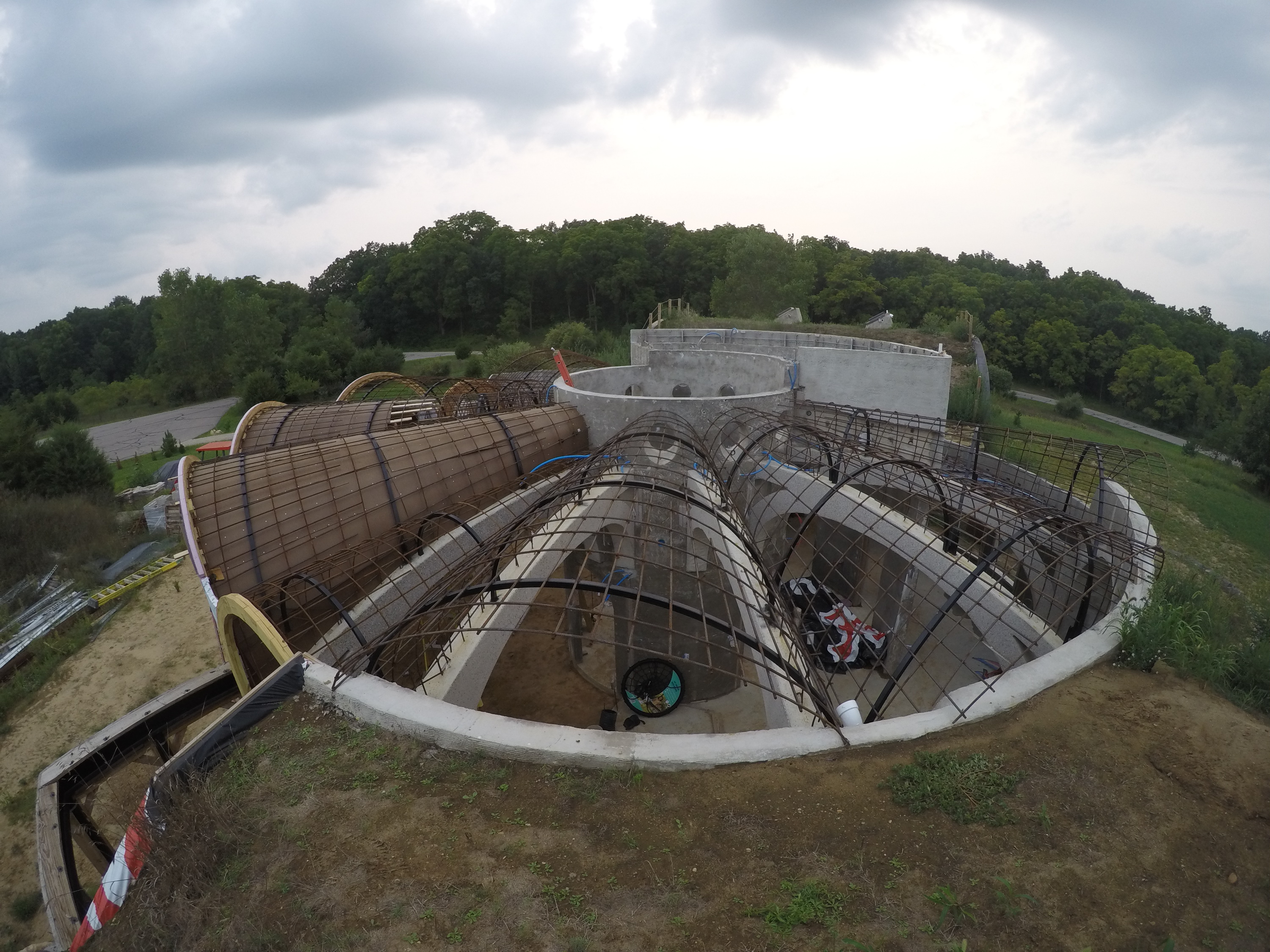

By the time we finished off the first vault, we had the plan mostly worked out.

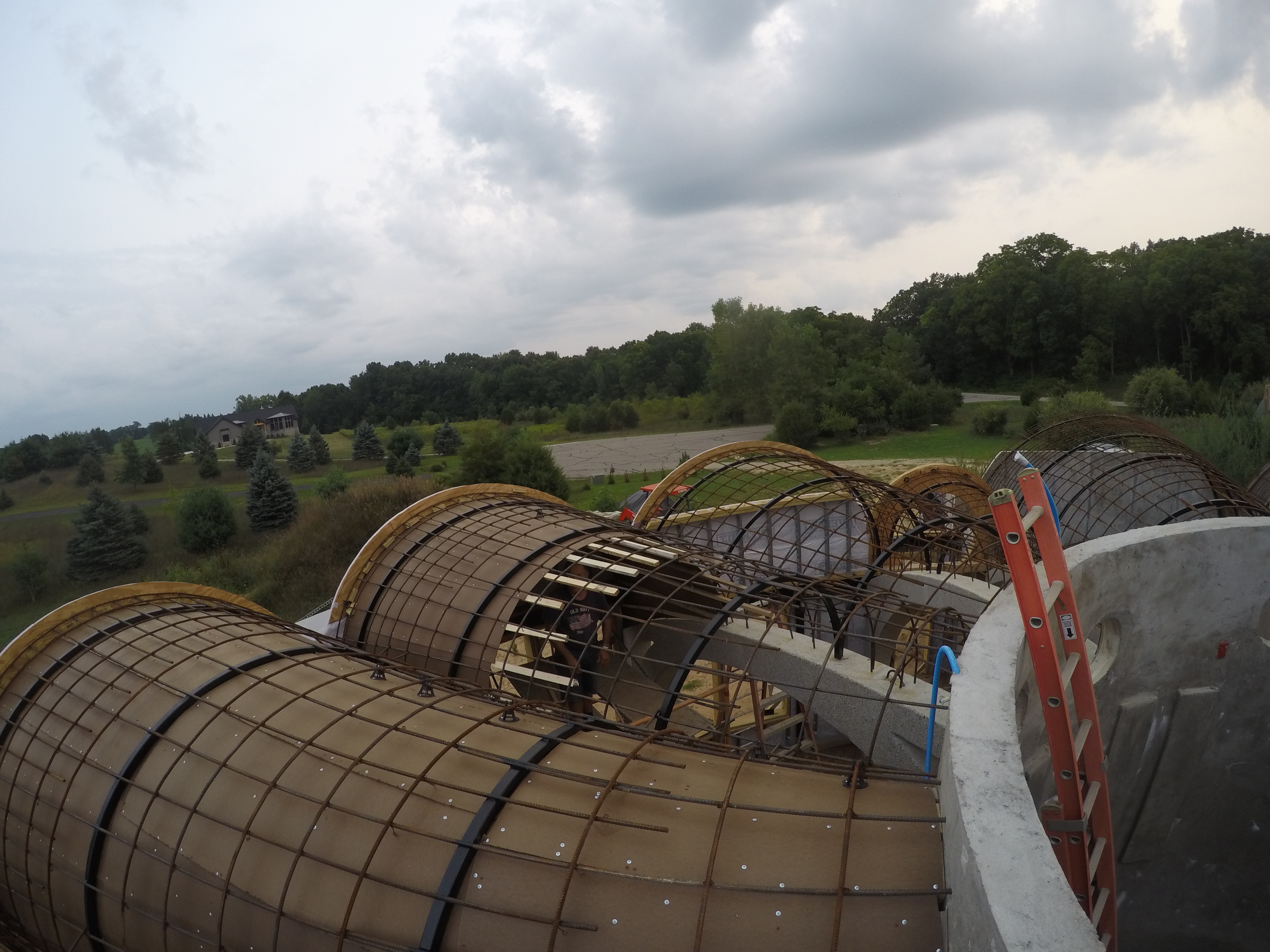

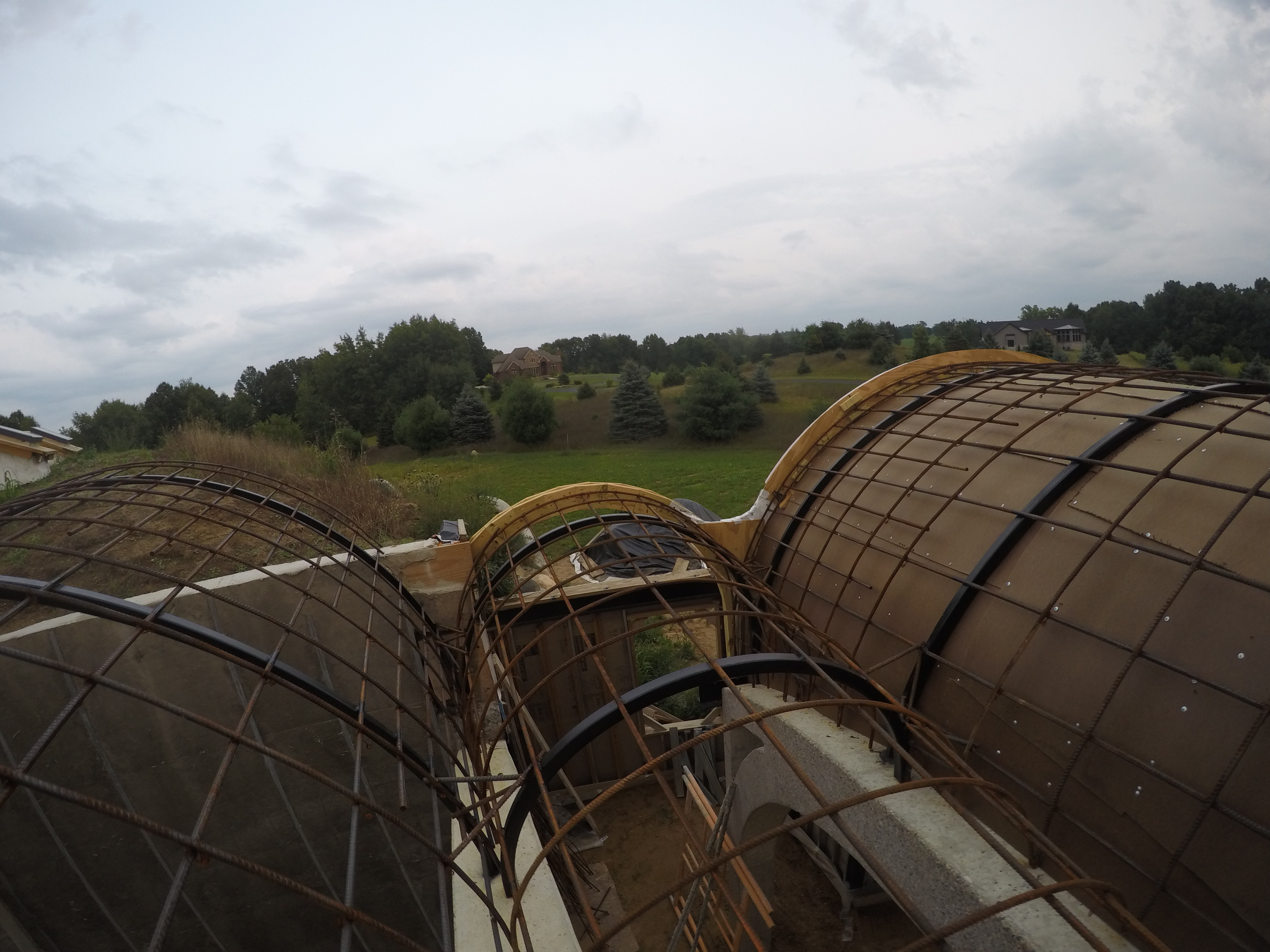

Just a pic of progress
Sherri’s brother Steve showed up for a tour.

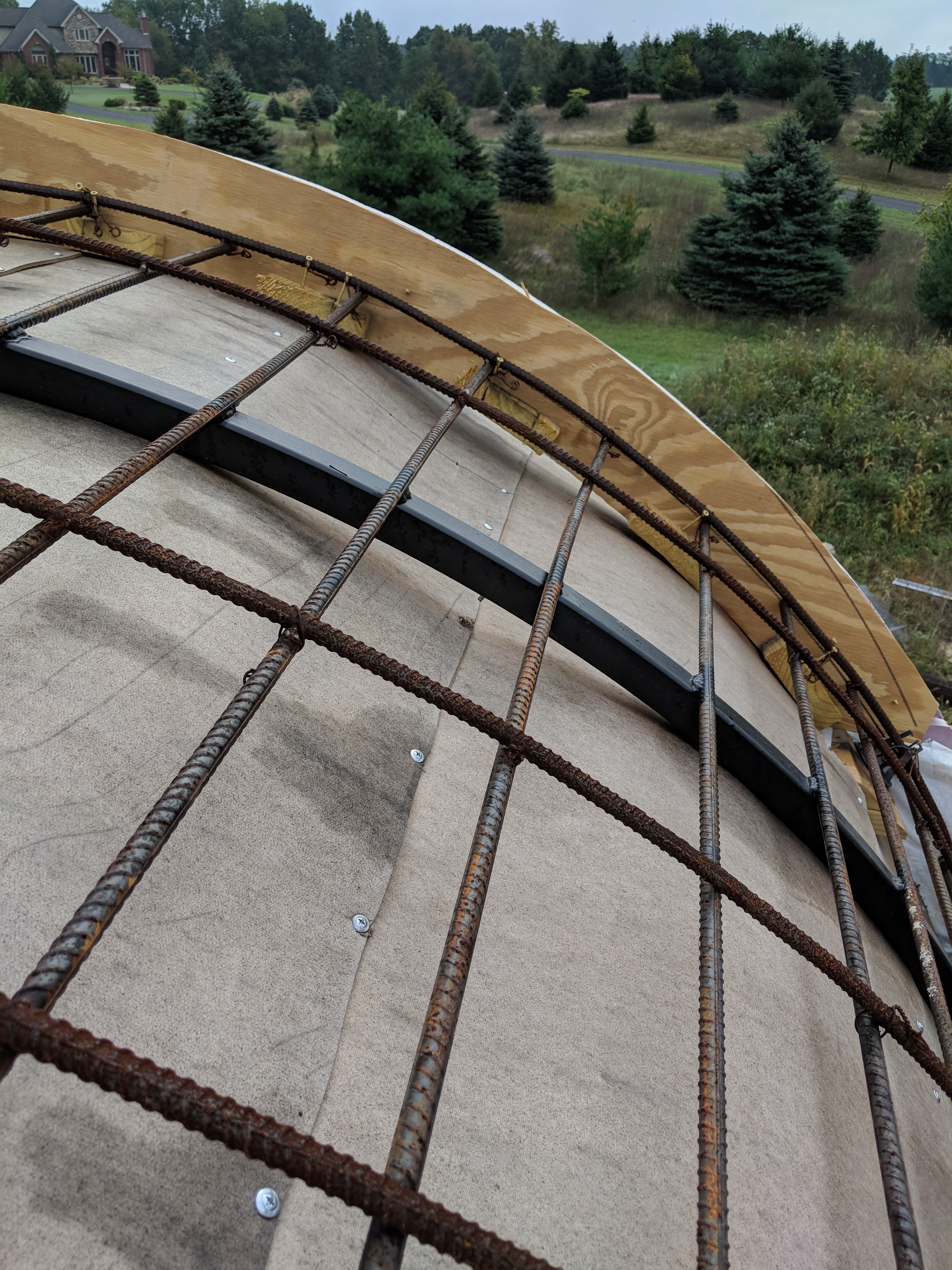

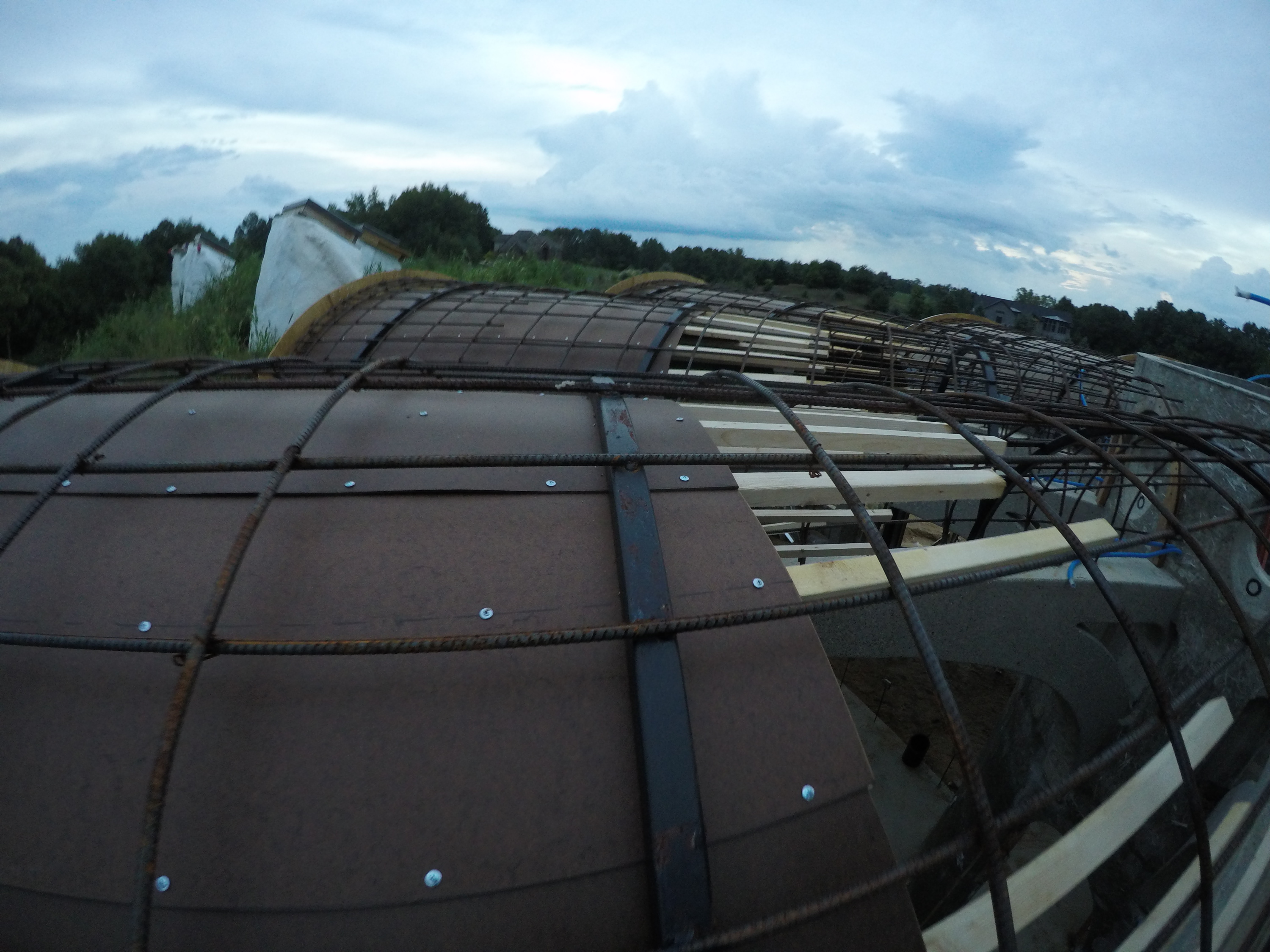

The second layer tucked in easily. The hardboard fit above the previous hardboard and the wood baton fit under the previous hardboard so it could be screwed into the steel arch. Then additional lath screws would be added from the outside to attach the hardboard to the batons.

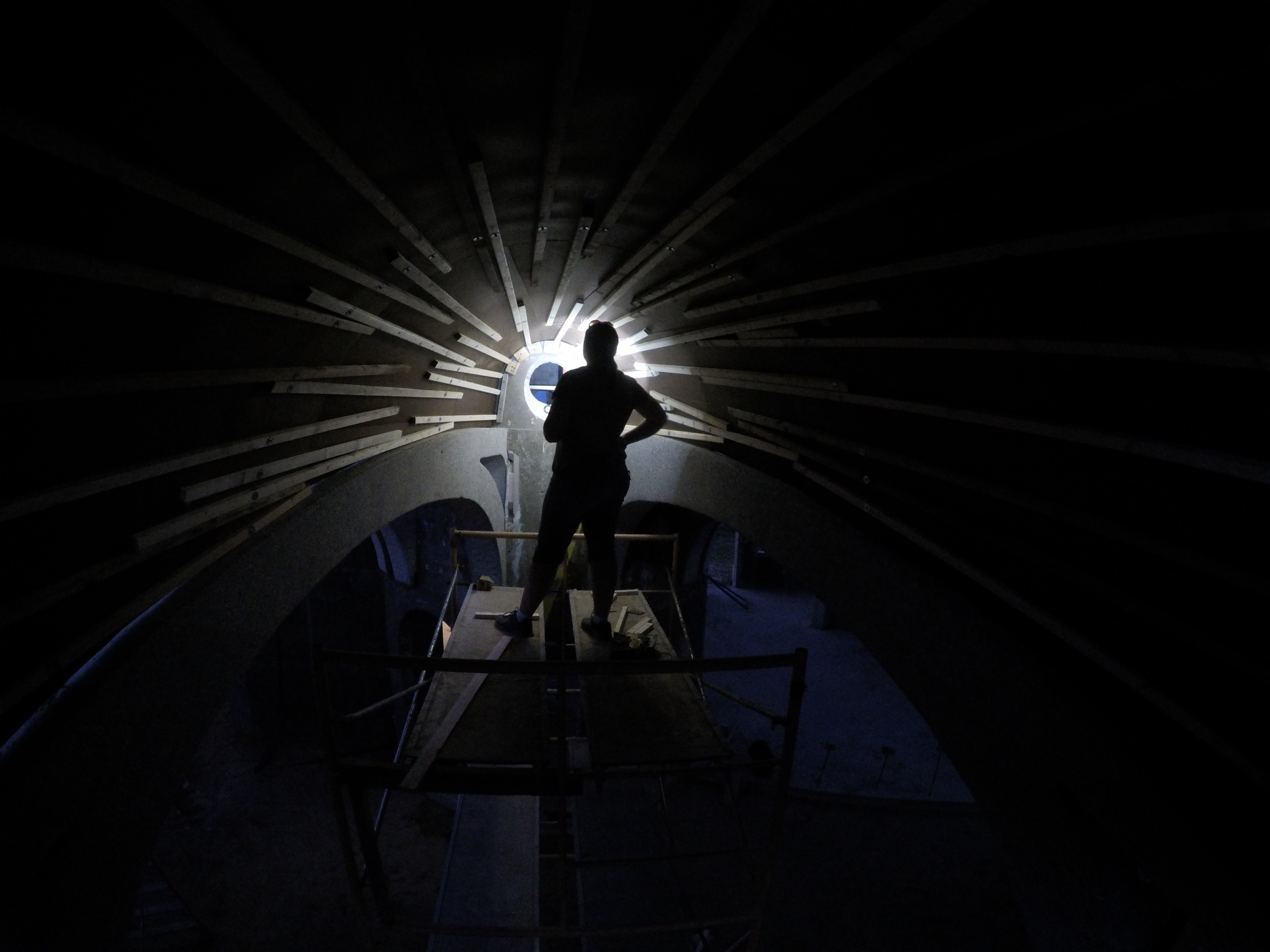

Sherri working until past dark…
Here you can see that the playroom vaults don’t have the end caps on yet. I can’t add the panels until after the end caps go on.

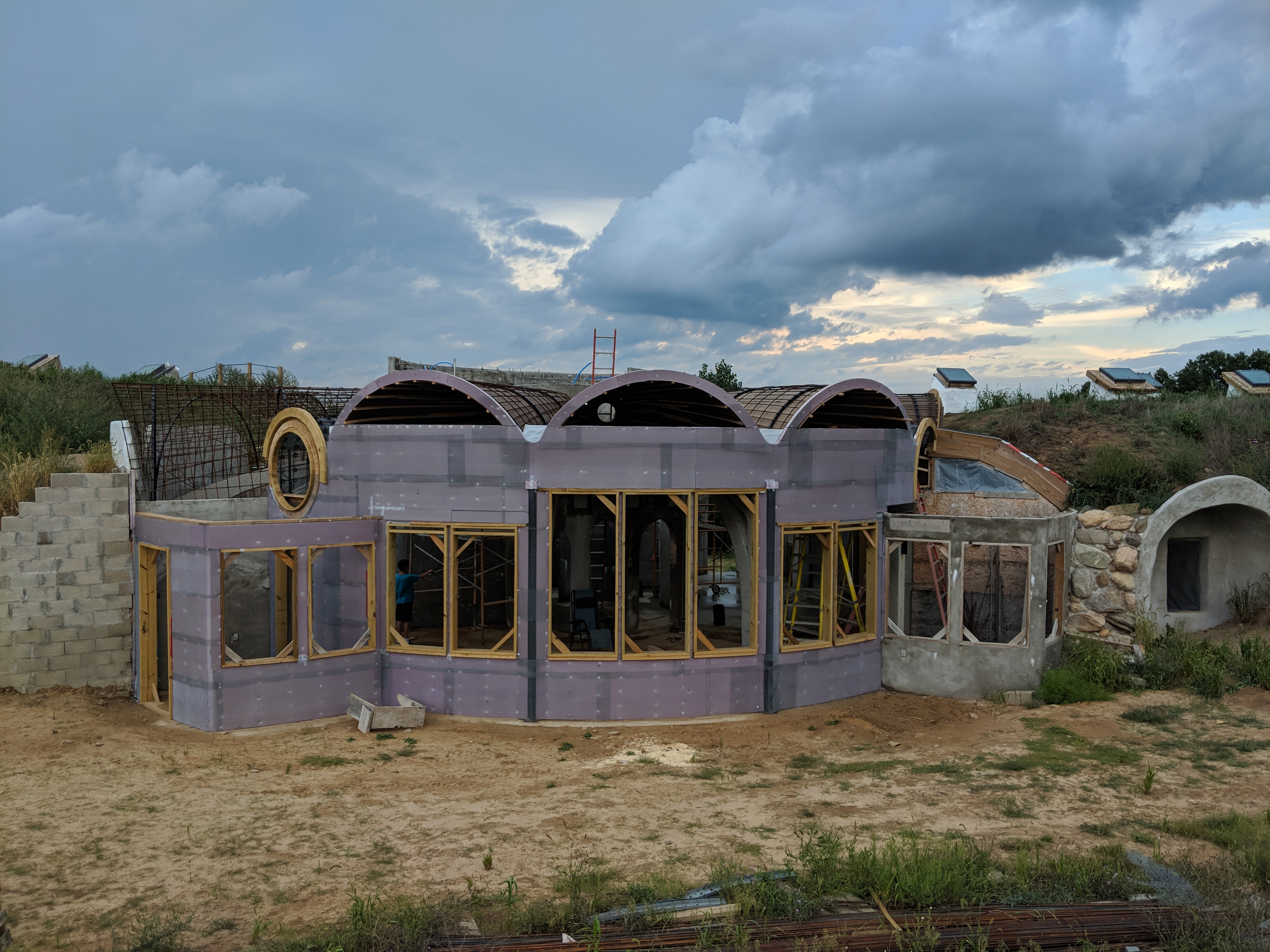

Here you can see the insulated south wall. We plan to shoot the whole structure (roof and walls at once).
Sherri put the lath vaults together. Here she is still adding the the rebar chairs and screen. The rebar chairs keep the rebar fully embedded in the concrete. The screen keeps the wet gunite from blowing thru the lath. It isn’t strong enough to actually hold the concrete, the lath does that.
David at the end of the day…

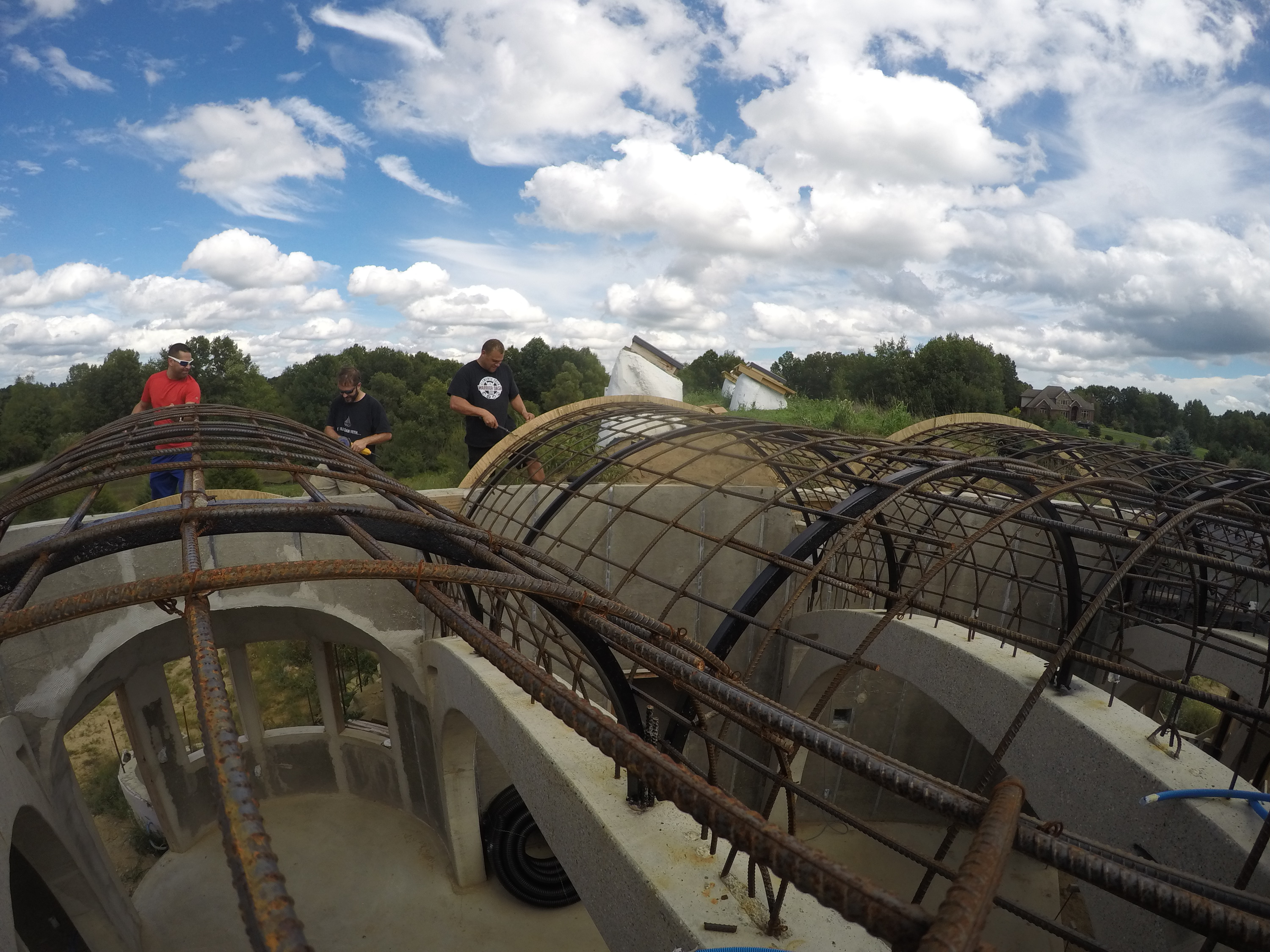

Our friends (Ryan and Aaron) came over to help for a few hours. We needed to put the end caps on the arches, so we started with that.
A pigeon made a nest and we carefully worked around it.

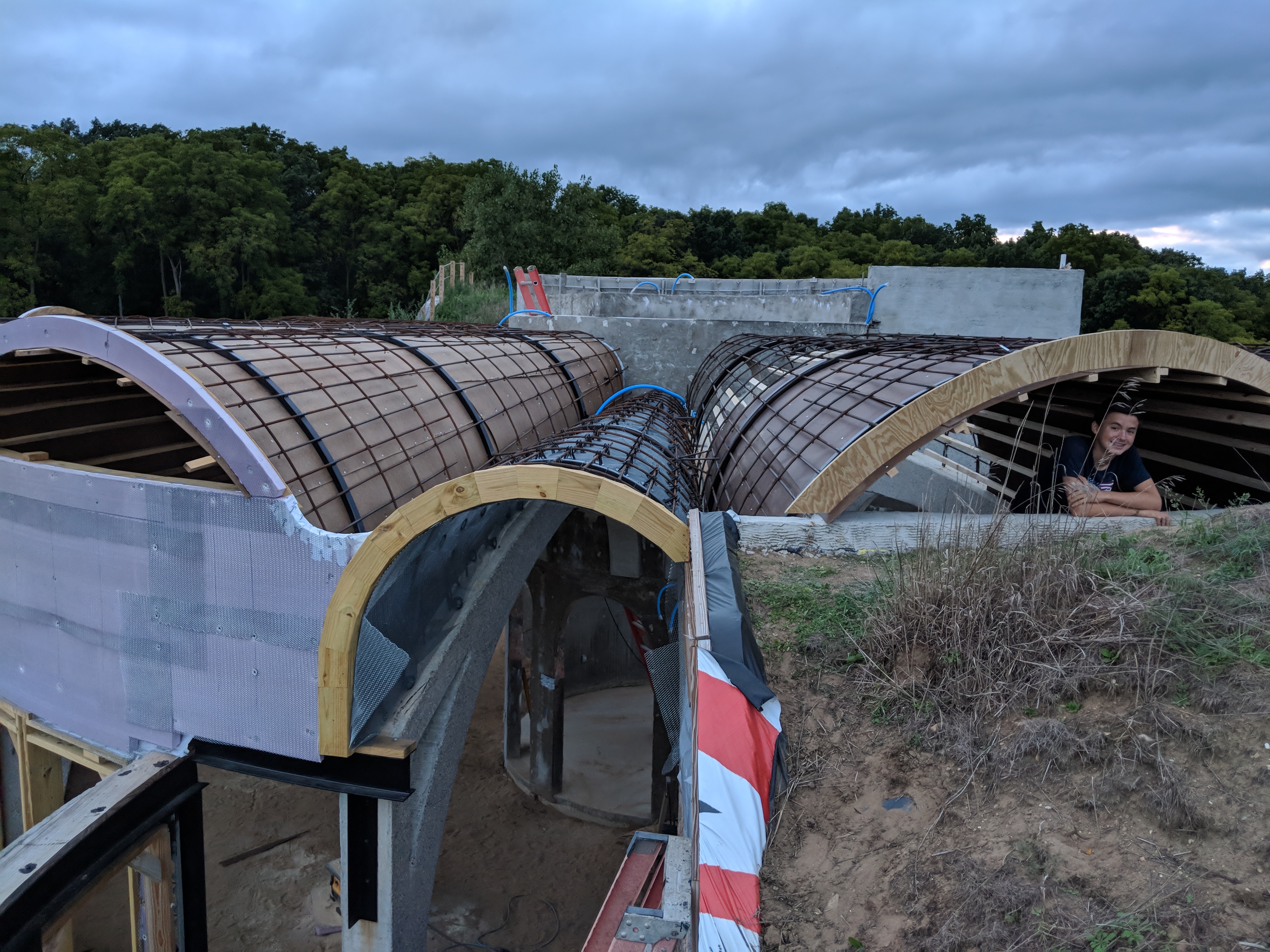

Michael hanging out with me while I was putting the forms up on the last standard sized vault.

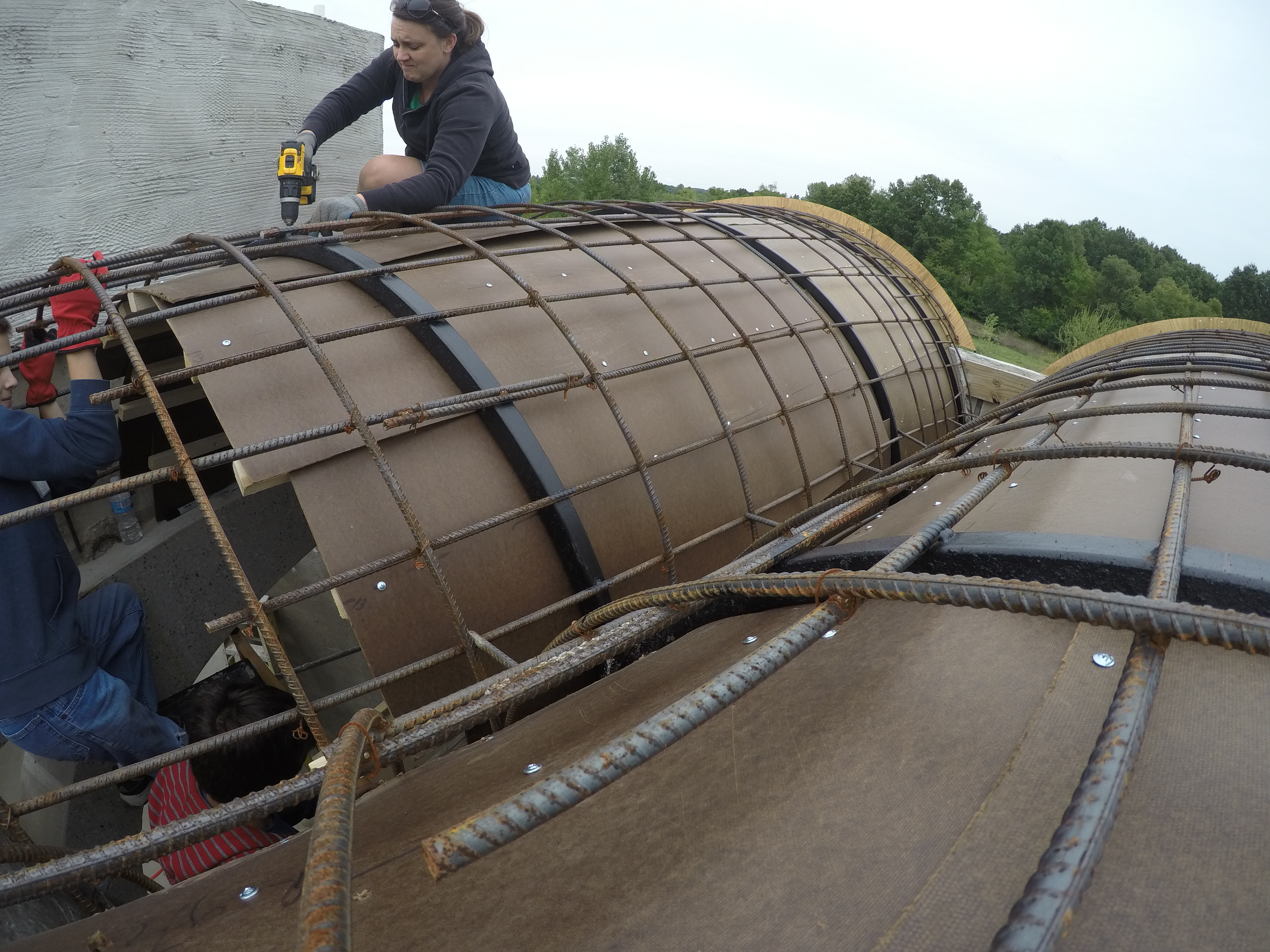

Sherri working hard
Here is the pigeon after the vault forms are in place.

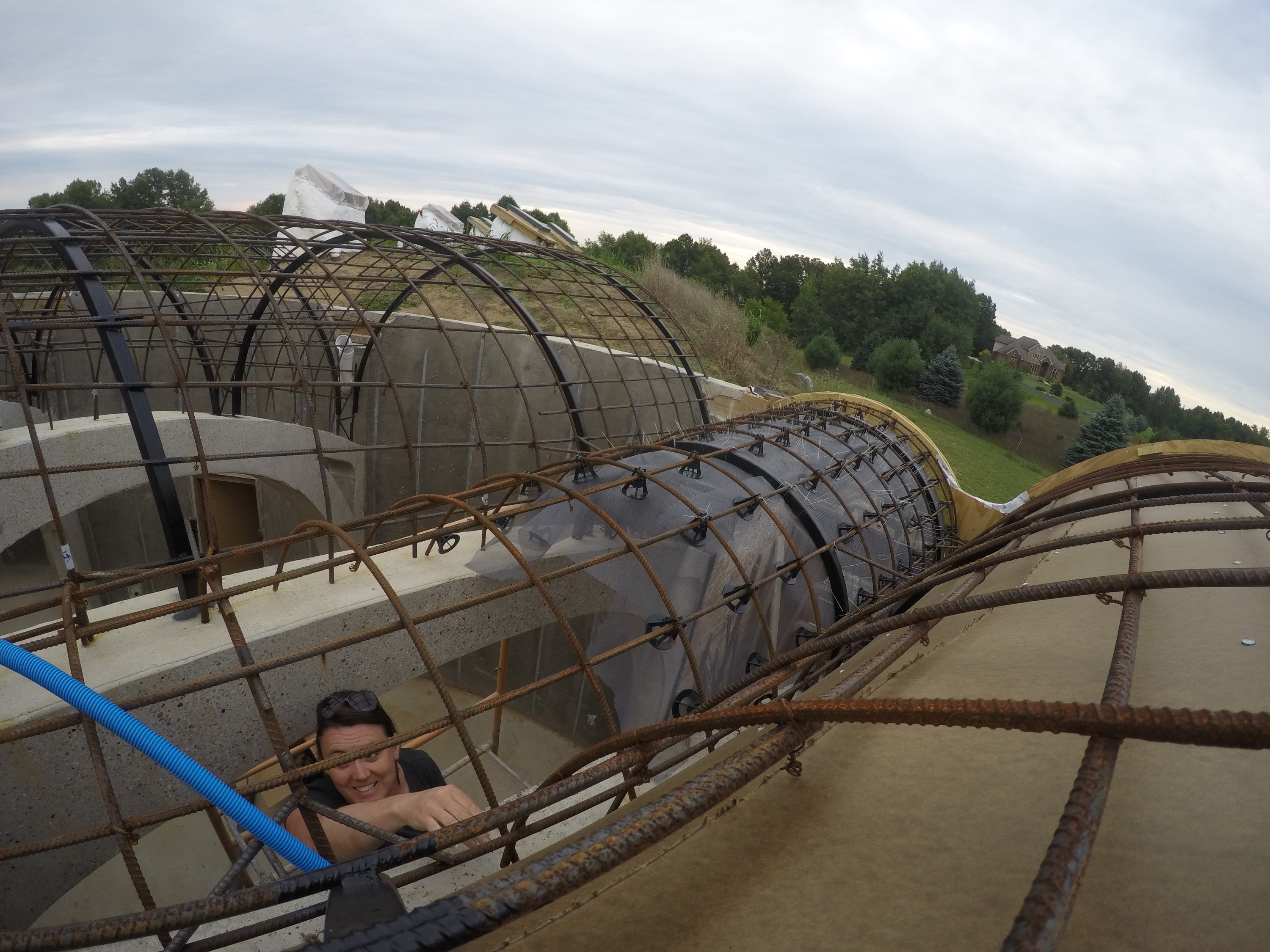

Sherri working on the second lath vault.
A standard end of the day pic.

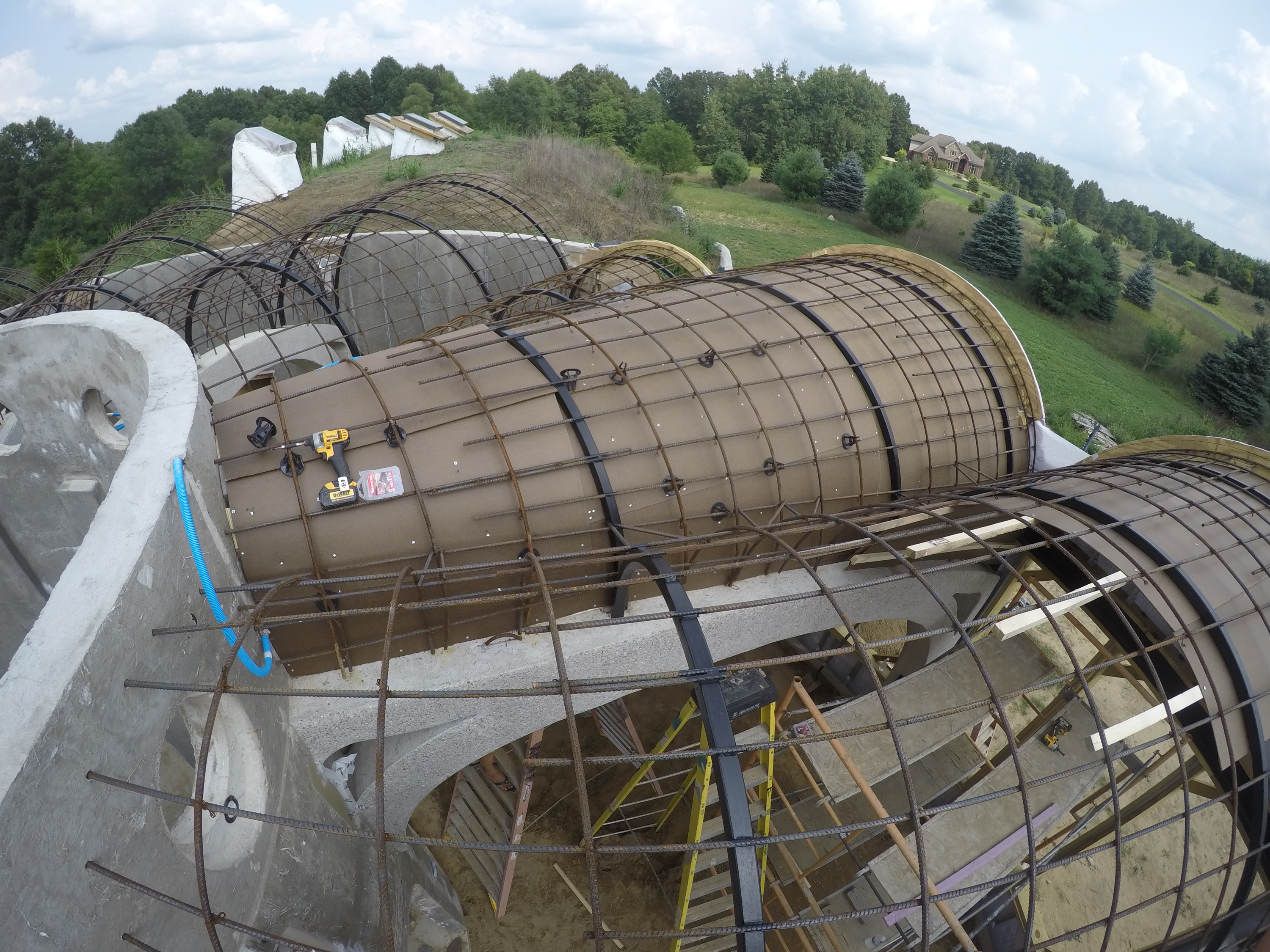

Just a close up pic on a standard vault.
Pigeons make crappy nests. They are very sloppy and the eggs or chicks often fall out. This pigeon had 3 eggs initially. After the second one fell out, I decided to put some tape up to look after the last one.
I double sided the tape so it wouldn’t be sticky against the birds.
My father packing up the tools at the end of a long day.
We usually recycle bill board vinyls to help with waterproofing. They always have an image, this one made me laugh.

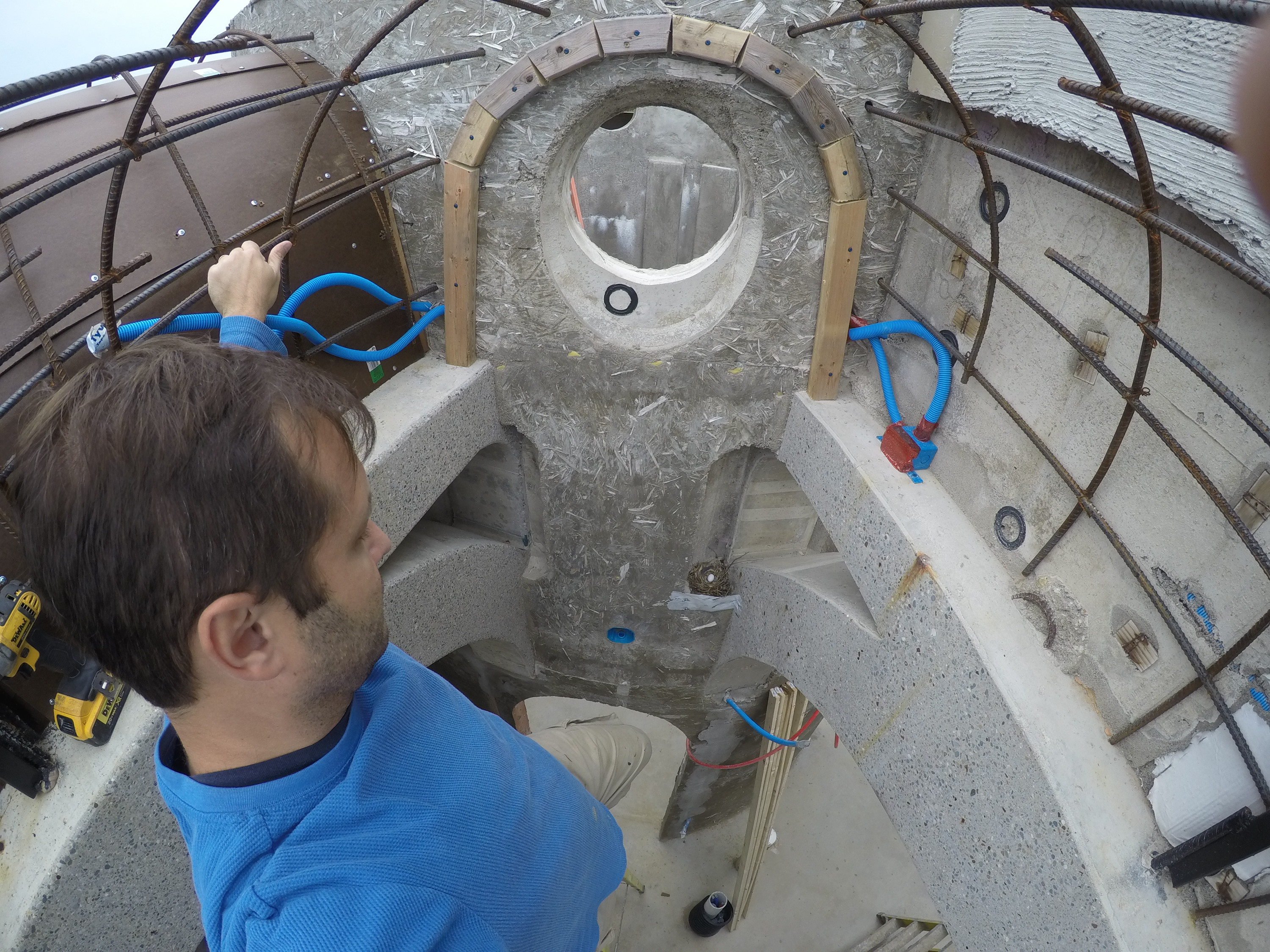

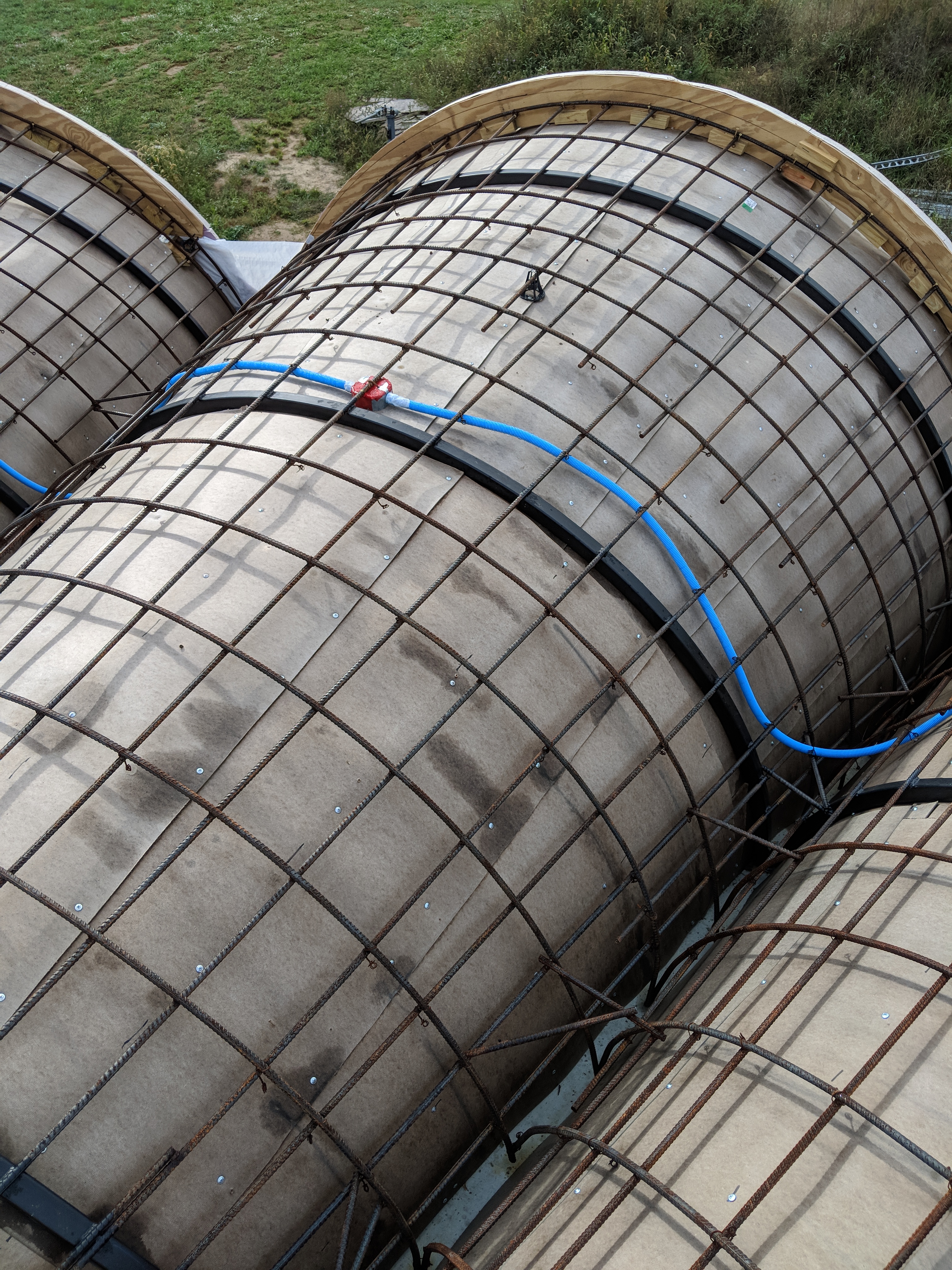

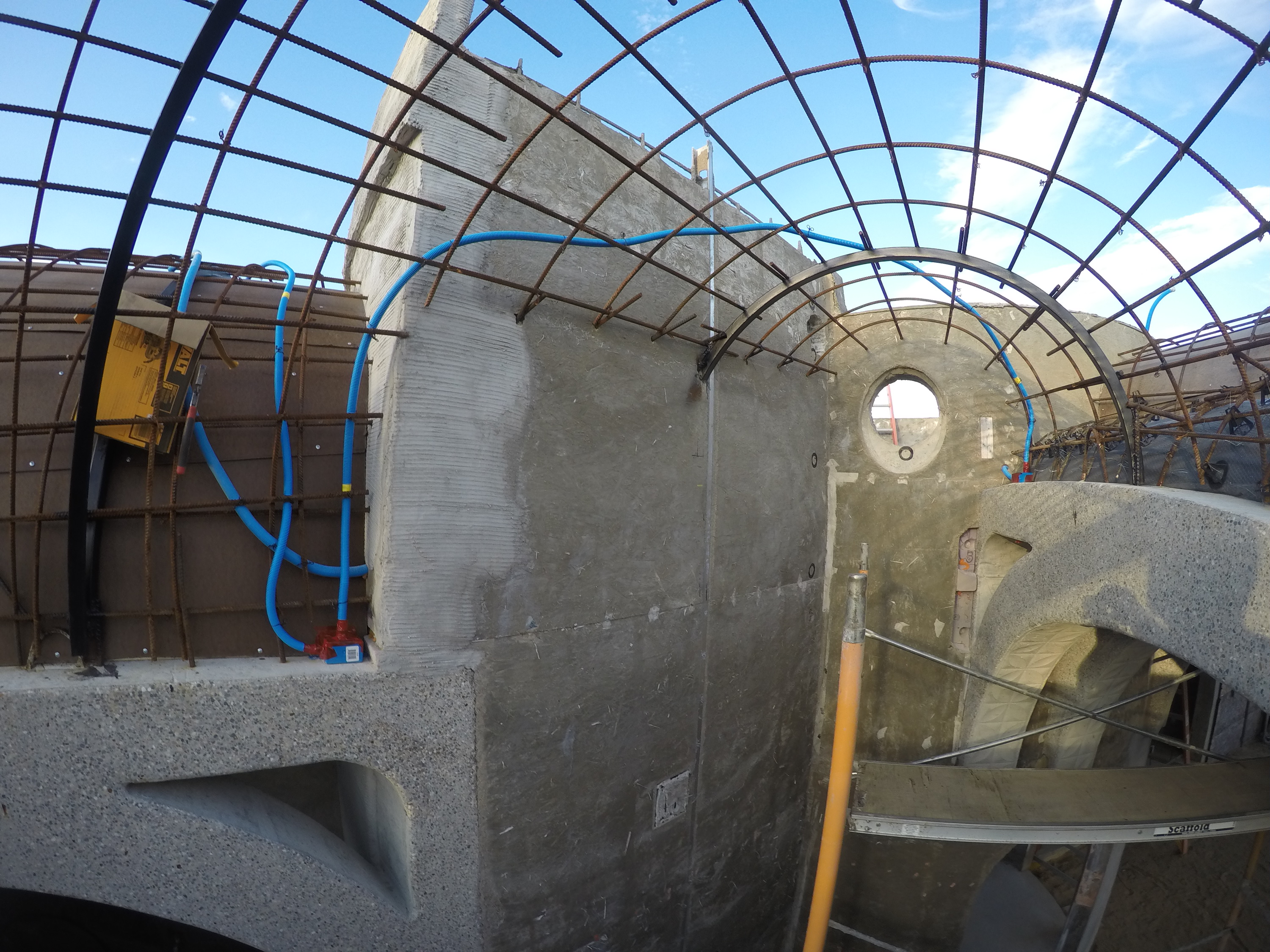

The smurf tube (ENT) electrical conduit will allow us to run wires up thru the vaults after the concrete is in place.
This smaller vault had too tight of a radius for the hard board, so we went with lath. I was able to put hardboard on the sides.

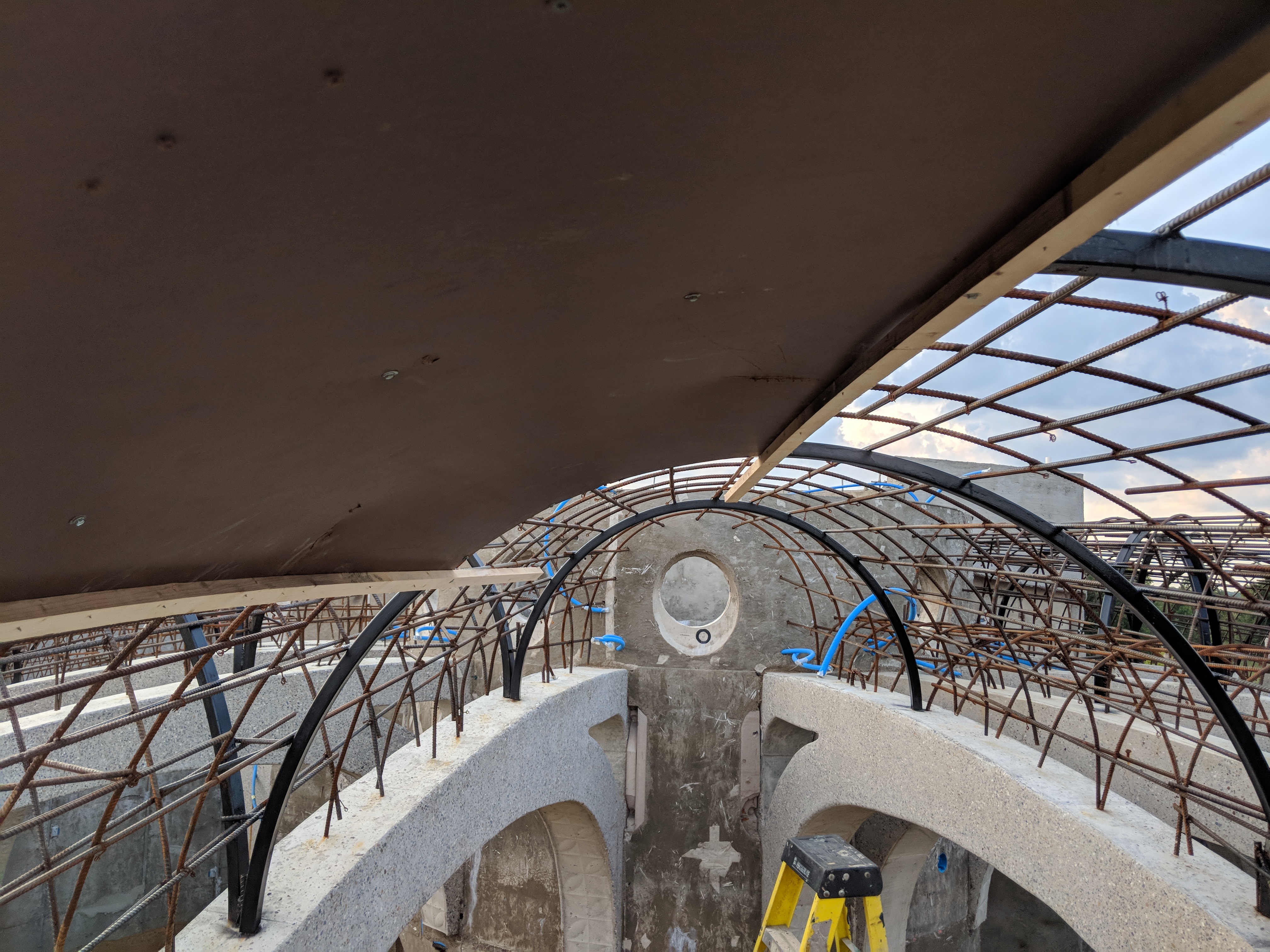

Inside of the dining room vaults.

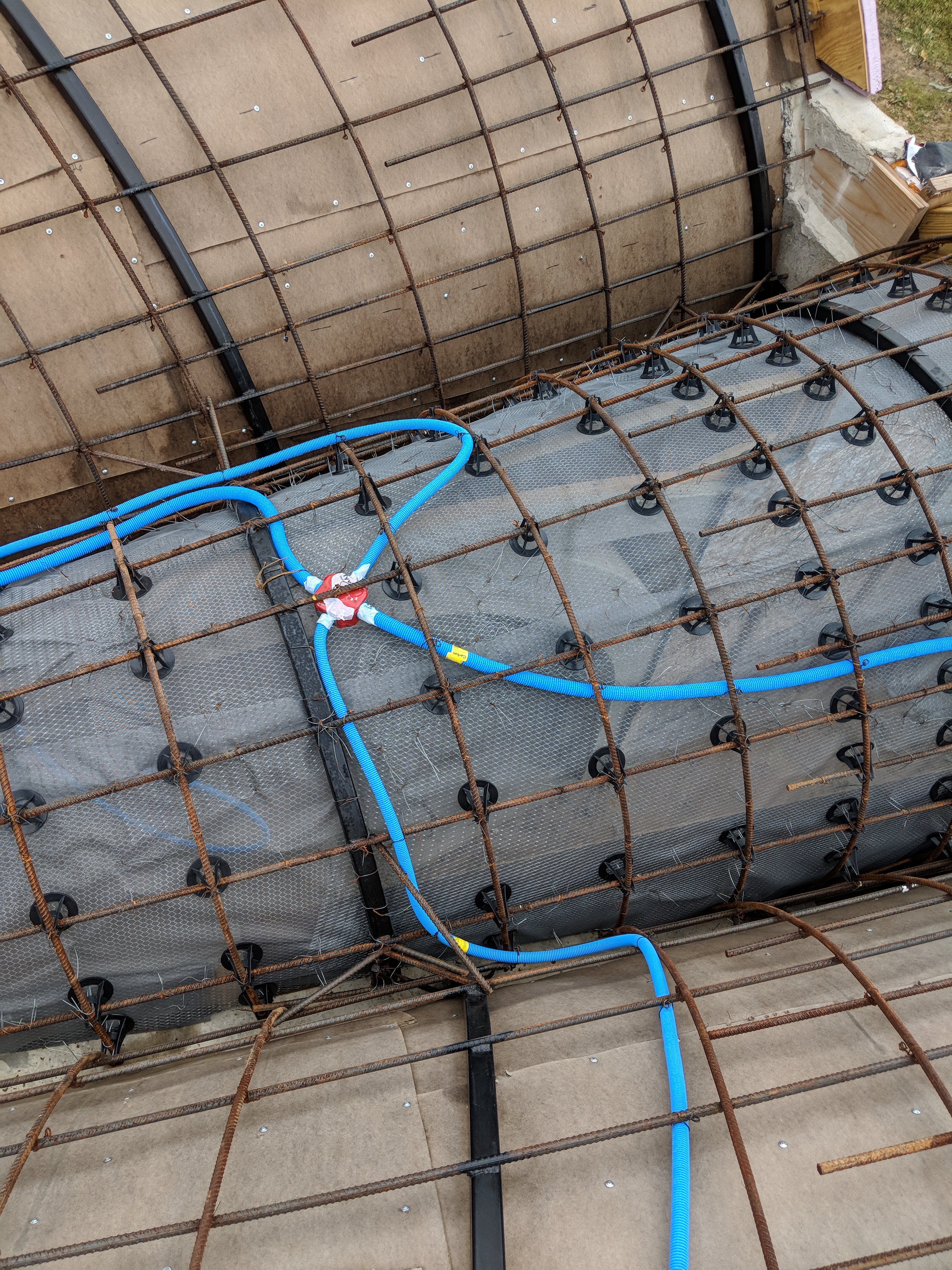

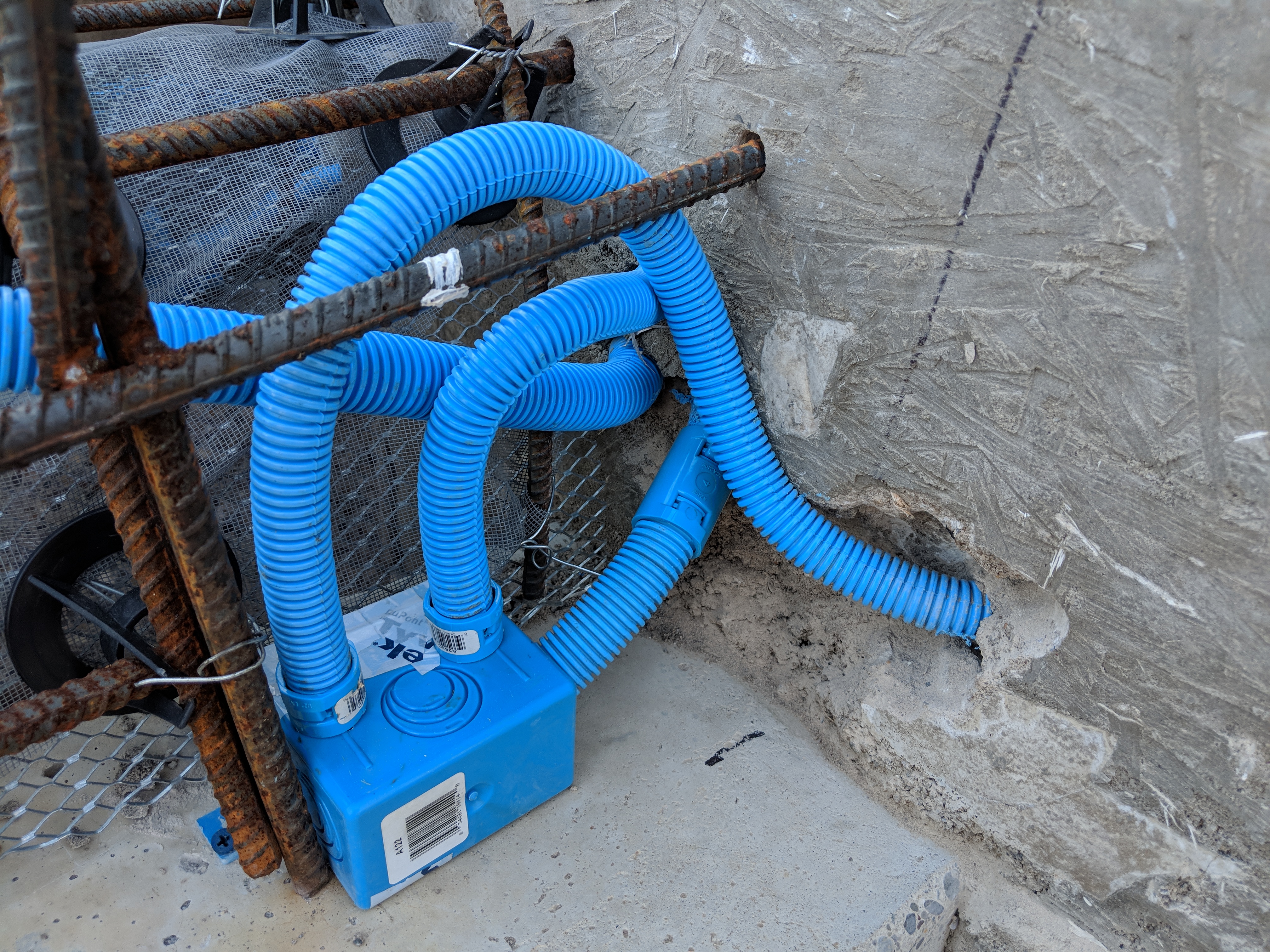

Here is an electrical box mounted on a lath vault.
Why 4 tubes? Well, 2 are for the light and they go to 3 way switches on either side of the room.
The other two are to run power from another switch to another light. We go thru the box because building code limits the number of turns in the pipe between two boxes.
I wouldn’t have been able to add these boxes after vaults were on both sides, so I would add them between adding the vaults. So one vault, then the next electrical box, then the vault on the back side…
After the concrete is in place, I can drill thru the box so wires can access both sides.
Most vaults have one ceiling fixture with a 3 way switch on either side of the room.

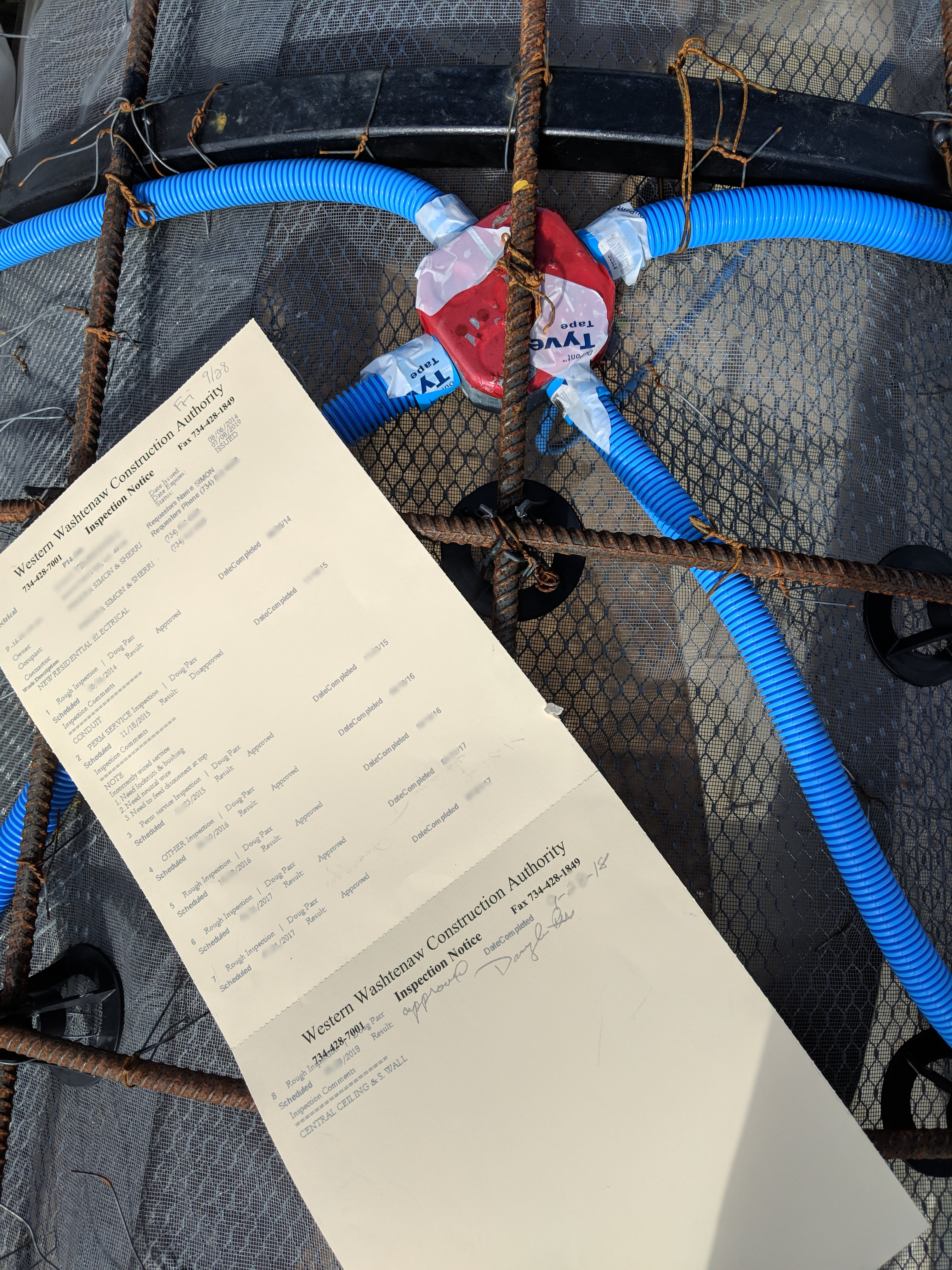

We have had a lot of electrical inspections… And we passed this one too.
The hardboard would expand when wet and the stress would cause the screws to pop.
These screws are pretty thick (#14), but the boards were still popping the heads off.
I sited the wood stove template (according to code) on the floor and then setup my laser to pin point where the hole in the ceiling should be.

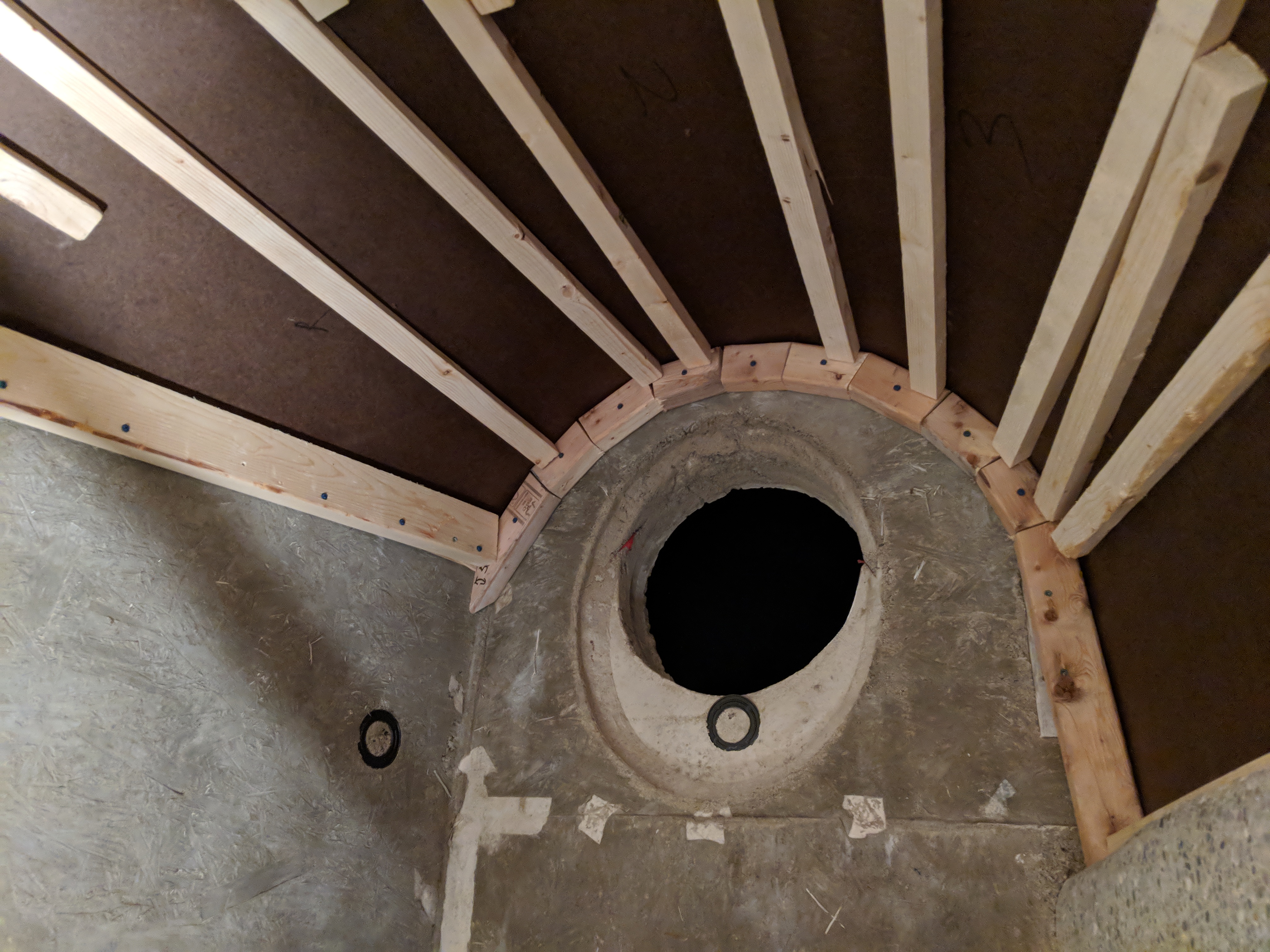

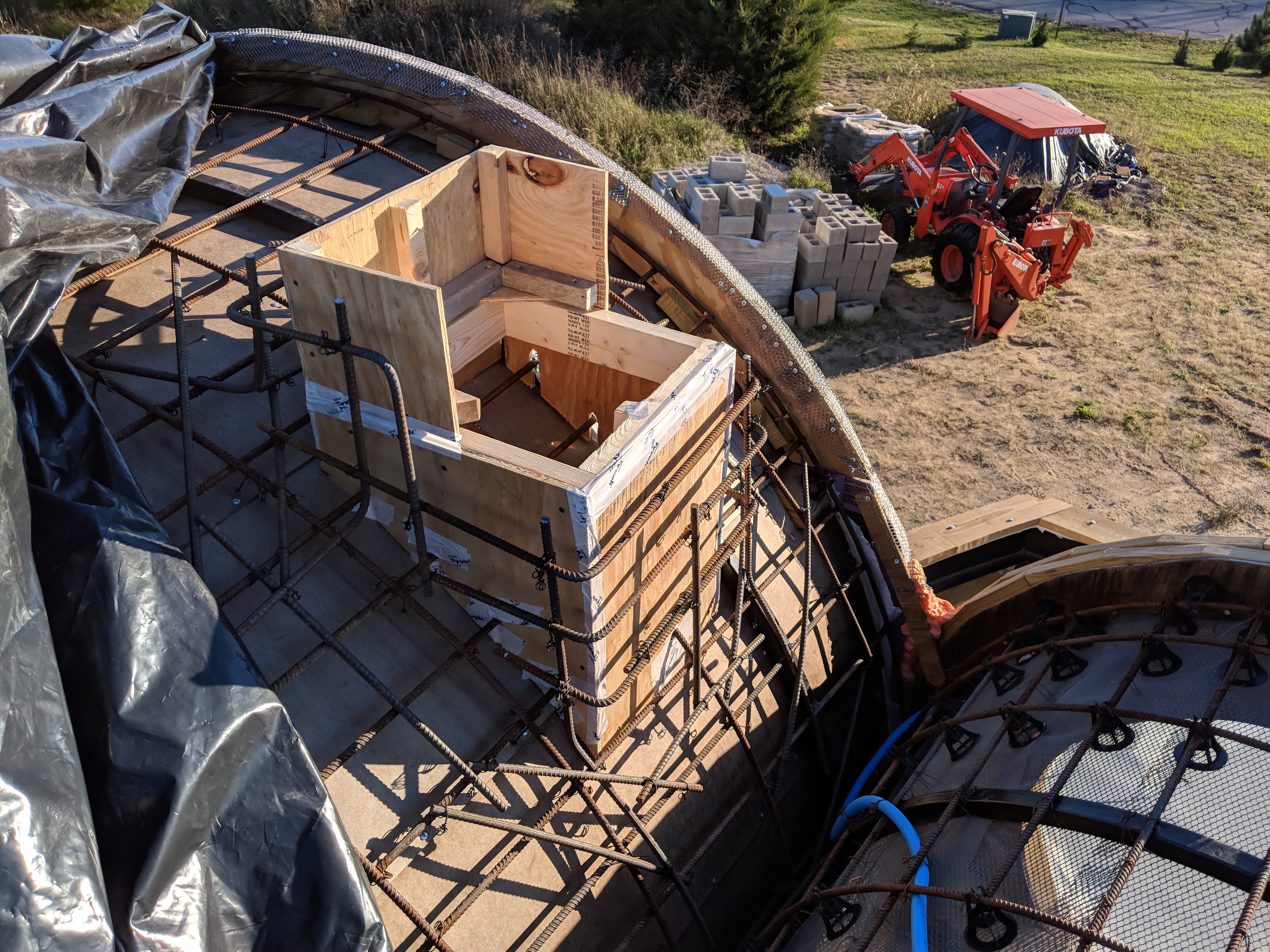

We built this form as a base for the chimney.
Once we started covering with plastic we would need to pull back the plastic everytime we worked on it.

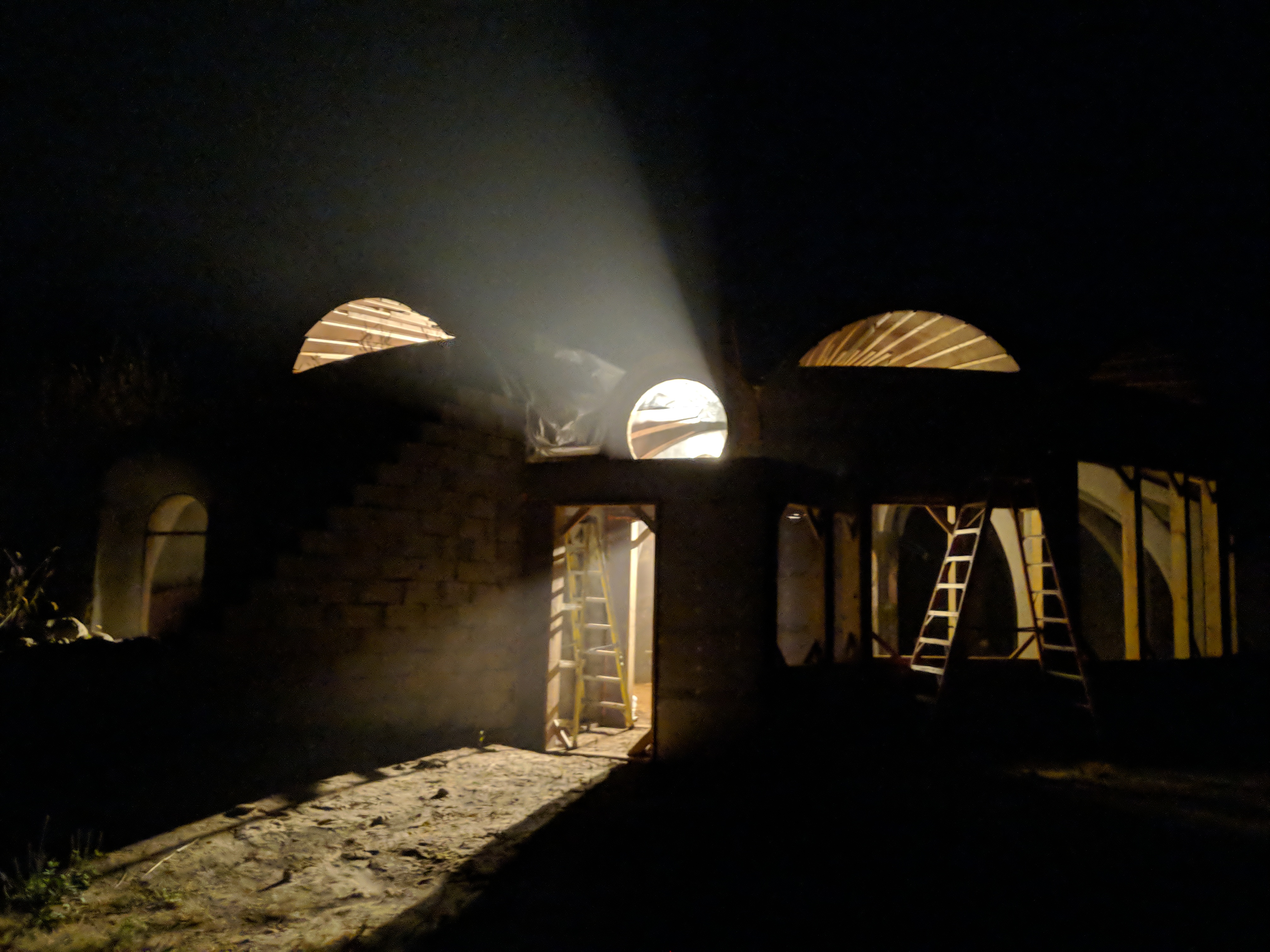

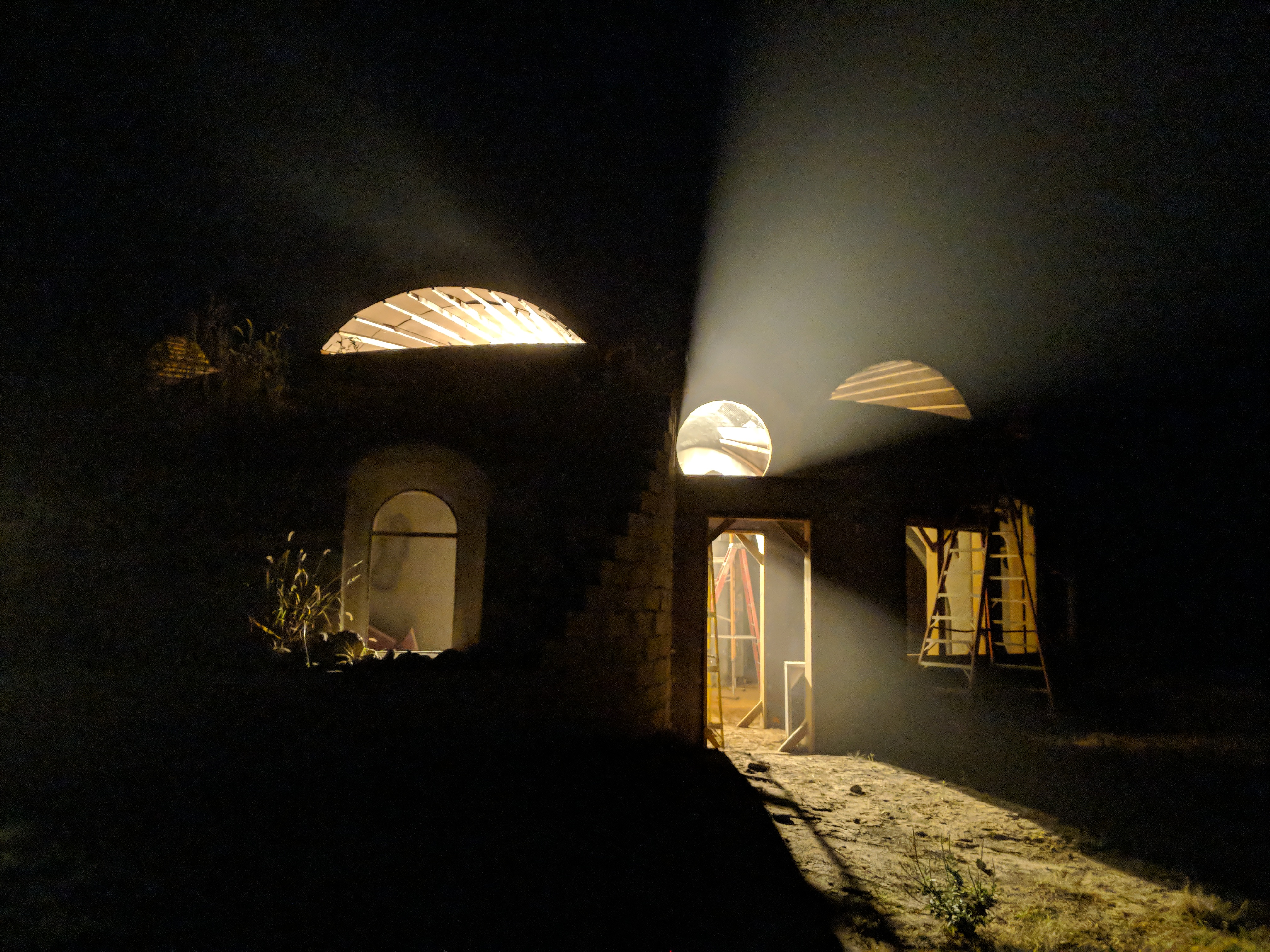

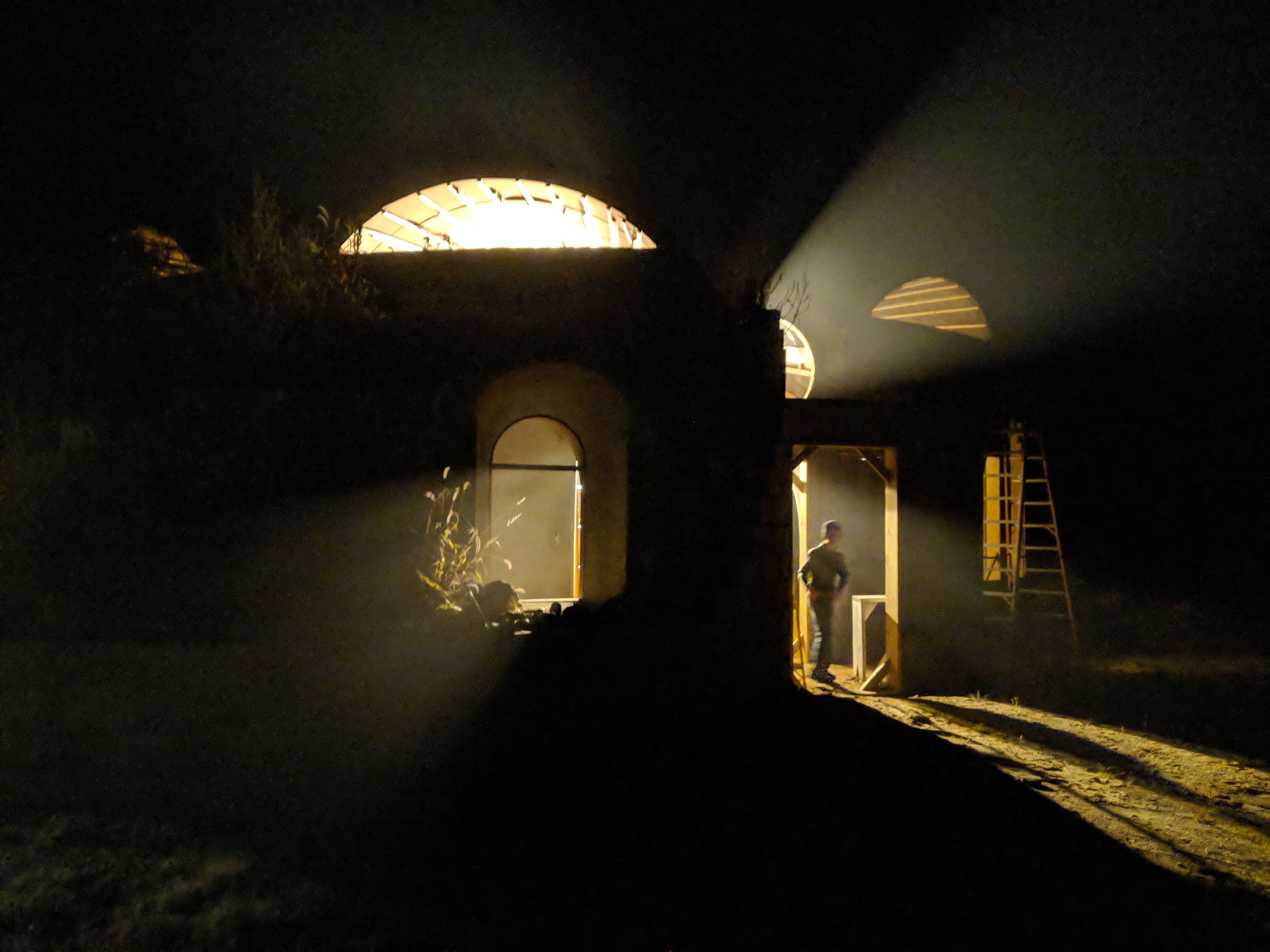

We often worked past sunset.
A large bird tore this rabbit up and dropped the pieces in the house…

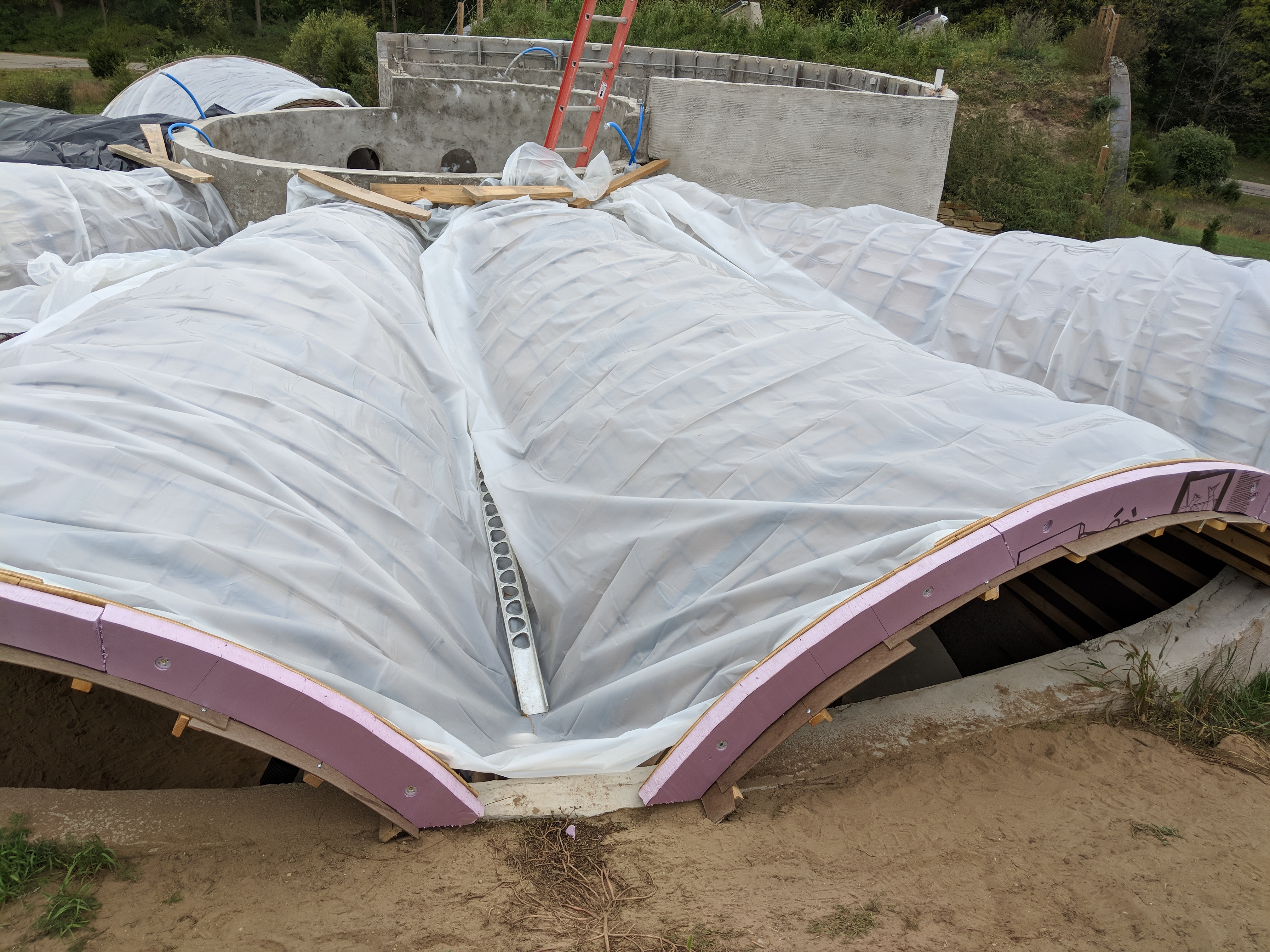

Covering the vaults with plastic was necessary for keeping the water off the vault.
